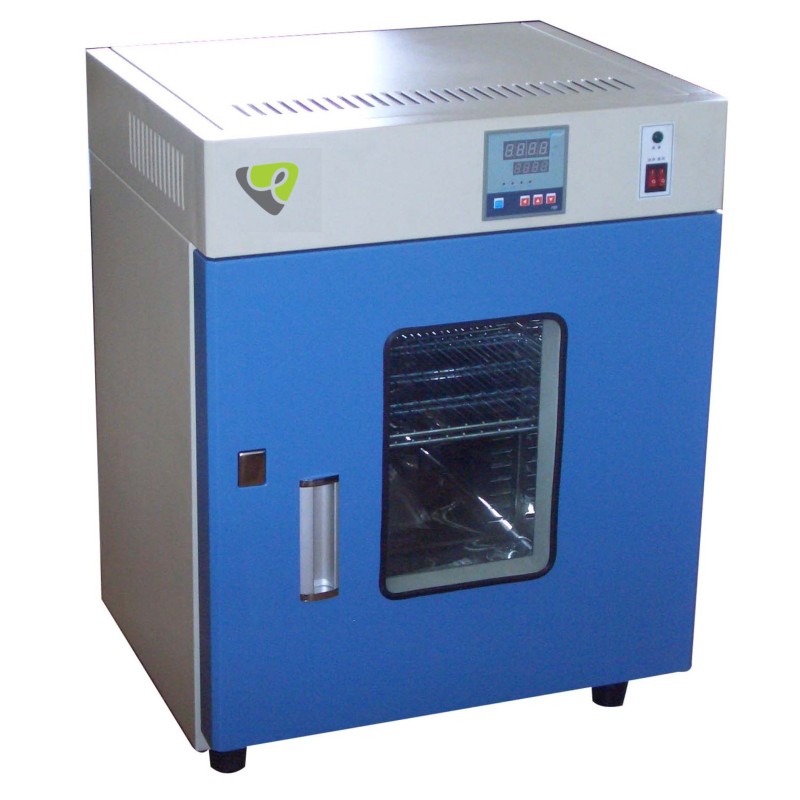

The perfect choice for reliable day to day operation in variety of uses. Drying of slides, paraffin embedding, tissue culture work, incubation of antibody test, excellent for Microbiological determinations, crystallization studies and Incubation of hydroxyl steroids. Construction:-incubators are sturdy, with double walled construction with complete inner chamber made of Anodized Aluminum or Highly Polished Stainless Steel. Outer chamber is made of Mild Steel Sheet, finished with powder coated paint. 75 mm gap between the walls is filled with special grade glass wool for proper insulation and to avoid heat losses. Inner chamber fabricated with ribs for adjusting shelves to convenient height. Supplied with 2 or 3 removable shelves.SHELVES are made of fully Anodized Aluminium Sheet or Polished Stainless Steel Sheet as per chamber. Door is insulated & fitted with heavy hinges. Door has Double glass window which facilitate inspection of samples without opening the door, Heating elements, made of high grade imported chrome wire are put inside the porcelain beads and placed at the bottom and side ribs for uniform temperature all over the space. Temperature Control :- Temperature is controlled by imported capillary type thermostat from ambient to 800C. Temperature control knob is graduated in centigrade degrees after actually observing the temperature in steady state. An L-shaped prismatic glass Thermometer is fitted on top of the Incubator for reading the chamber temperature

Features

• Temperature range of 20ᵒC to 40ᵒC.

• Made up of stainless steel – SS 304.

• Temperature Control # 0.10C.

• Internal light for better viewing

• Voltage 230#10% single phase.5Hz

• Capacity of 100 to 260 Litres

• Capacity of 100 to 260 Litres

• Temperature Uniformity # 0.10C.

• PID temperature controller with integrated timer

• Digital temperature display.

• As per ISI specifications.


Specifications

SIZE OF INNER CHAMBER W * H * D CAPACITY NO OF SHELVES

300 * 300 * 300 MM 28 LITERS 2

355 * 355 * 355 MM 45 LITERS 2

455 * 455 * 455 MM 95 LITERS 2

455 * 605 * 455 MM 125 LITERS 3

605 * 605 * 605 MM 221 LITERS 3

605 * 910 * 455 MM 250 LITERS 3

605 * 910 * 605 MM 333 LITERS 3
