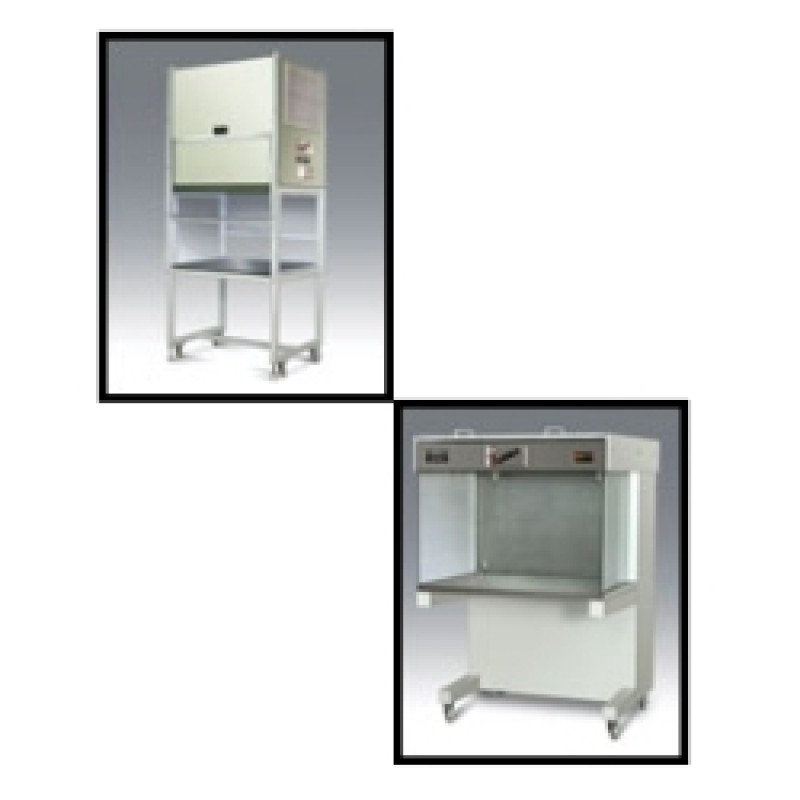

Laminar Flow Cabinet

We are involved in manufacturing and supplying a wide range of Laminar Flow Cabinet in two models such as horizontal flow model and horizontal flow model.

The detailed description of our range is given below:


Horizontal Flow Model

The Horizontal Flow Model airflow ensures to provide product protection within the work area. This is confined by removable clear glass panels and stainless steel work surface. These are also designed in such a manner to offer easy disassembly for access through a small door.


Standard Features

  • Provides ISO class 5 (Class 100 U.S. Federal Standards 209 E) environment within the work area that complies with the latest IEST recommended practices
  • Perforated stainless steel diffuser screen products the HEPA filter and maintain uniform air flow velocity within the work area
  • Easy disassembly for access through a small door


Specifications

  • Filters: Aluminium framed High efficiency particulate air (HEPA) filter, with a minimum efficiency of 99.99% at 0.3 micron
  • Pre filter: Washable type pleated pre-filter with 90% efficiency
  • Construction: Models available in laminated finish / 18 gauge stainless steel 304
  • Airflow: 90 FPM (0.45 m/s) 10 FPM (0.05 m/s) average velocity measured 6 in. (152.4 mm) from the diffuser screen
  • Uniformity 20% of average or better
  • Noise level: <65 DB measured at 1 meter from filter face
  • Motor / Blower assembly: Direct drive, continuous duty ¼ HP with sealed bearings. It is mounted on FRP casing to reduce noise & vibration and is dynamically balanced
  • Options: Electrical outlet, magnehelic pressure differential gauge, mini pleat HEPA / ULPA filter, Gas / vacuum / air inlet nozzle
