DIGITAL MELTING POINT APPARATUS CDMP-300
FEATURES
- Photo Electric detection.
- Large Backlite LCD display.
- RS-232 Interface.
- Measurement of 3 samples simultaneously.(Optional)
- Display of initial and final melting points.
- Calculation of average value of initial and final melting points.
- Platinum resistor sensor for the precise temperature measurement.
- Capillary sample tube as stipulated by pharmacopoeia.
SPECIFICATIONS
Measuring Range of Melting point : Ambient to 300 C
Resolution : 0.1 C
Rate of heating(oC/min) : 0.2,0.5, 1, 1.5, 2 3, 4, 5
Accuracy : +0.5 C upto 200 C, +0.8 C from 200 C to 300 C
Heating time (50 to 300 C) : 3 mins
Cooling time( 300 to 50 C) : 5 mins
Capillary sample tube size : OD 1.4mm, ID 1mm
Power Supply : 220 V +/-10%, 50Hz, 100 Watt

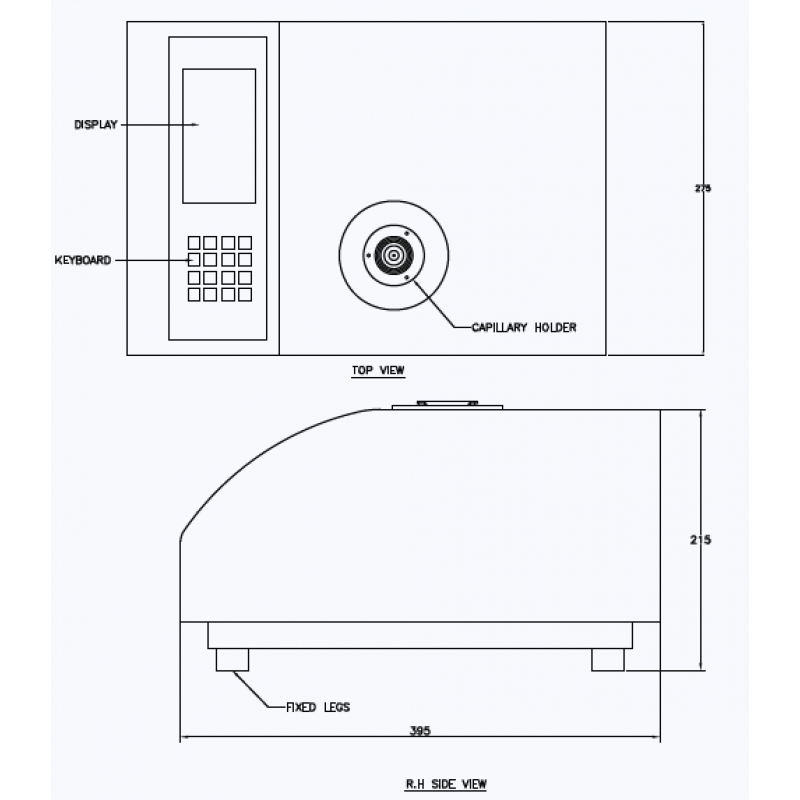

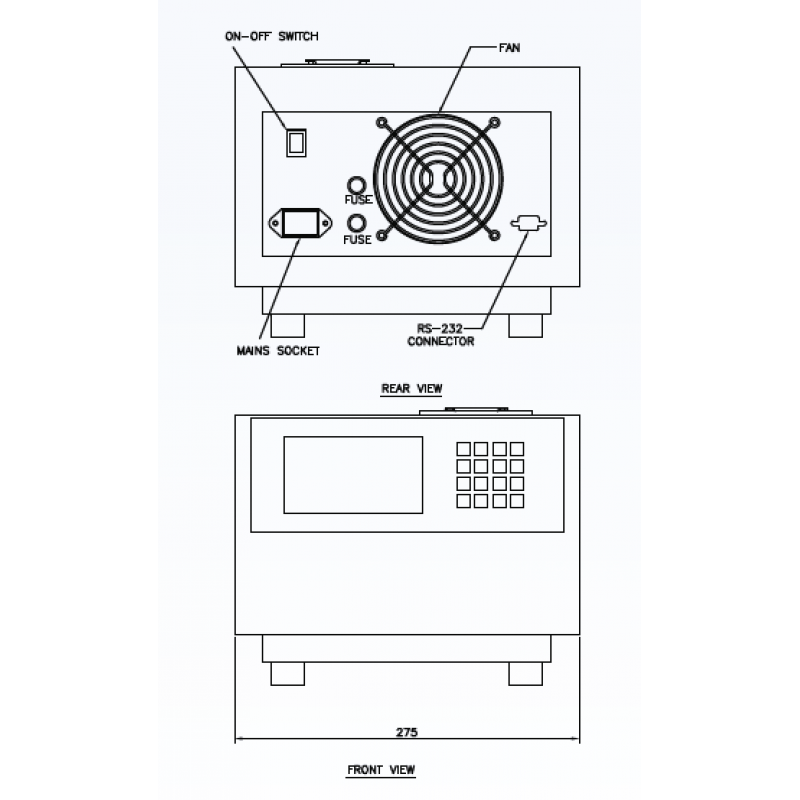

Dimensions : 400 x 280 x 210 mm
Weight : 12.5 kg
