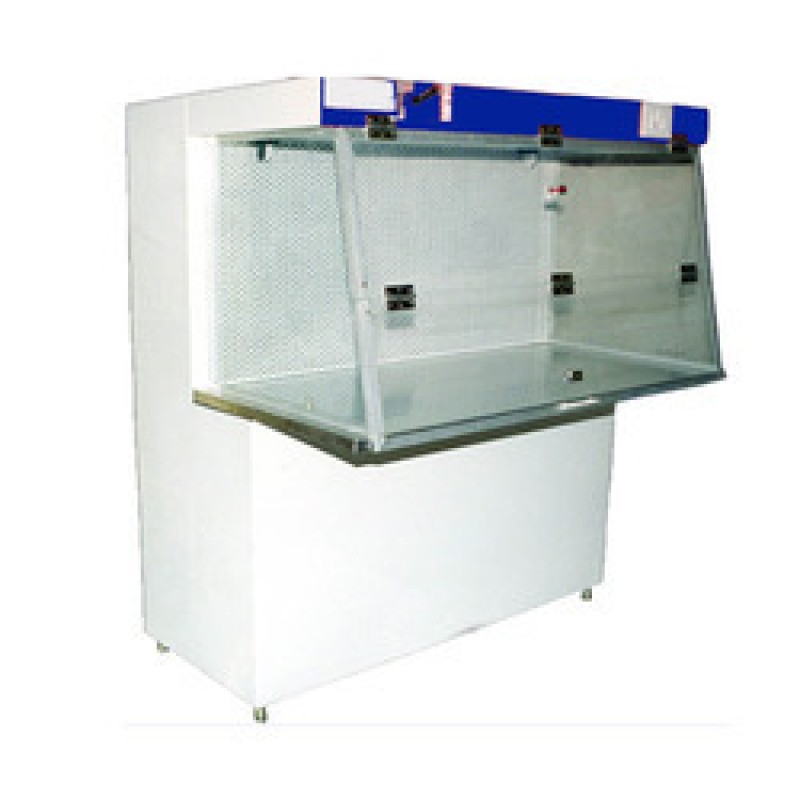

Our GMP model, Laminar Air Flow Chamber are available in Vertical as well as Horizontal Models and used where high-tech manufacturing and assembly takes place and thus widely found in semiconductor assembly, biotechnology, pharmaceutical, aerospace, food, medical devices and hospitals. These Laminar air flow chambers are tested on various quality parameters to ensure smooth functioning and manufactured with Class 100 airflow in the work region in accordance to US FED STD 209.
Technical Specifications:
- Air Velocity: Between 0.4 to 0.5 m/s with +/- 20%
- HEPA Efficiency; 99.997 % at 0.3 microns with DOP test
- Pre filter Washable with a stoppage: up to 90 % at 5 microns
- Sound Level: Less than 65 dB (A)
- Light Intensity (Lux): 900 - 1300 Lux
- Cleanliness: US Federal Standard 209 E
- Class: 100
- Power Supply: 220/240 V Single Ph, 50 Hz AC
- Working Area: 2’*2’*2’
- Size of filter: 2’*2’*6’
- HEPA Filter(with Unit) One
- PRE Filter(With unit) One
- Illumination(with Unit): 1*20 watts
