FEATURES

• pH , mV, Conductivity, Resistivity, TDS, Salinity, Temperature modes.

• Automatic or Manual temperature Compensation.

• 3 point pH calibration.

• Buffers selectable from 1.68pH, 4.00pH, 4.01pH, 6.86pH, 7.00pH, 9.18pH, 9.20pH. 10.01pH and 12.45pH

• Automatic buffer recognition.

• 1 point conductivity calibration for the entire range.

• Bi directional RS232 interface. Baud rate selectable from 1200,2400,4800 and 9600.

• Single and continuous print out of measuring parameters.

• Multiple Printout types. Combinations selectable from Sr. No., pH, mV, conductivity, TDS, Salinity, Date, time and temperature.

• Real Time Clock.

• Calibration report as per GLP requirements.

• Electrode Slope and mV offset display.

• LCD display with Backlight.

• Memory storage of 100 measurements.

• Data logging facility up to 500 results. Data logging interval selectable from 5S, 10S, 20S, 30S, 1M, 2M and 5M.

• Temperature calibration with respect to solution of known temperature.


SPECIFICATIONS

pH Range : 0-14pH

mV Range : +1999.9mV

Conductivity Range : 0~200mS/cm spread into 5 ranges

0.00~20.00μS/cm, 20.0~200.0 μS/cm,

200~2000 μS/cm

2.00~20.00mS/cm, 20.0~200.0 mS/cm,

Resistivity Range : 0~100MΩcm

TDS Range : 0~100ppt(g/L)

Salinity Range : 0~100ppt

Temperature Range : -10.0~110.0 C

pH Accuracy : +0.02pH

mV Accuracy : +1mV

Conductivity Accuracy : +1% FS

Temperature Accuracy : +1% FS

ATC pH : 0~100 C

ATC Conductivity : 0~50 C

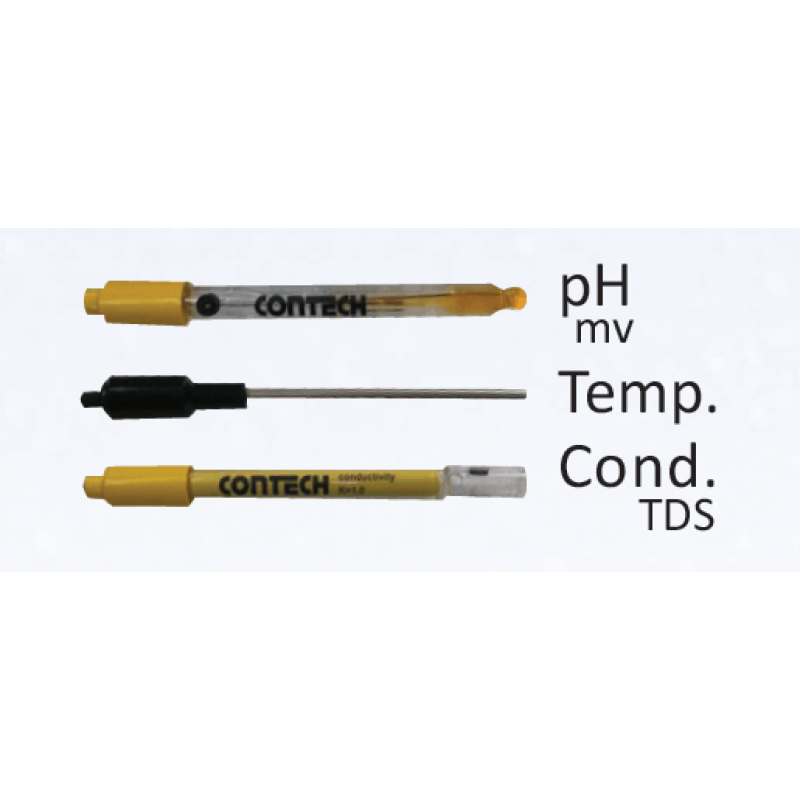

pH Electrode : pH combination electrode-EpHG03

Temperature Electrode : Temperature sensor electrode-ETS01

Conductivity Electrode : ECNG01

Power : 9V/ 500 mA External adaptor

Operating Temperature : 15~45oC

Meter Dimensions (mm) : 165 (L) x 190 (D) x 60 (H)

Meter Weight : 700 g

Optional Accessories

Magnetic Stirrer MS-01,

Battery backup unit BBEC-01

Calibration Standards
