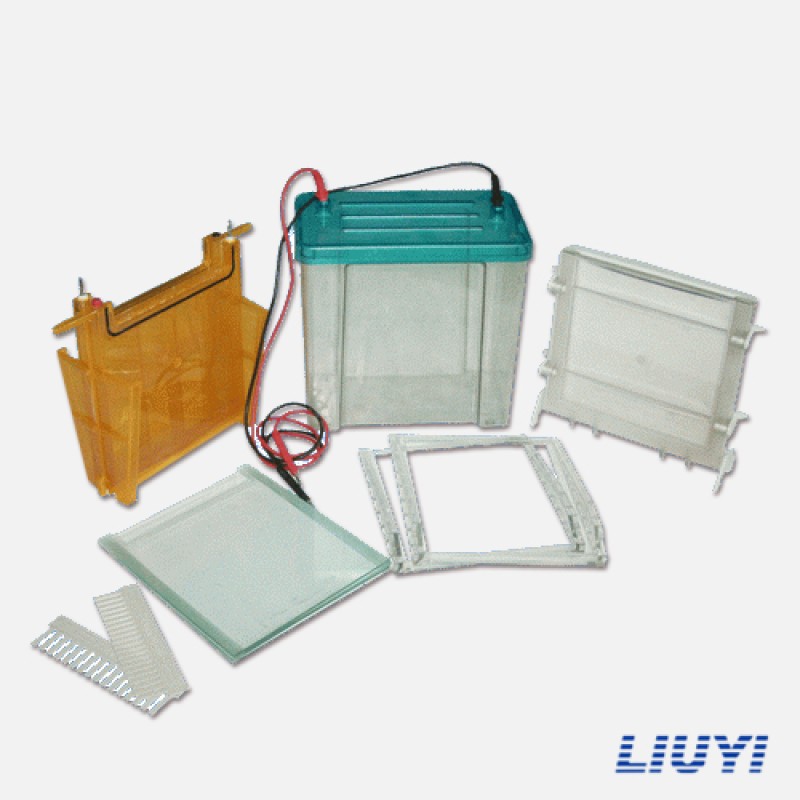

DYCZ-24F Electrophoresis Cell

Model: DYCZ – 24F

Patent No.:ZL200430068255.9

Patent No.:ZL200420084041.5

Features:

• Special wedge frame design can fix gel rooms firmly;
• Molded buffer tank equipted the electrodes with pure platinum;
• Gel casting device (1.0,1.5 mm) make it convenient to cast the gel;
• Built-in heat exchanger can eliminate the heat produced during the running;
• Run one gel or run two gels at the same time;
• Special lid design avoids mistakes during the operation;
• Power fails when you open the lid for user’s safe;
• High resolution separation with simple operation.

Specifications:

• Gel dimensions( L X W): 200 × 175 (mm);
• Combs: 16 well × 1.0mm, 167 μl volume;

                    16 well × 1.5mm, 251 μl volume;

                    21 well × 1.0mm, 132 μl volume;

                    16 well × 1.5mm, 198 μl volume;

                    (Four kinds of combs for you to choose)

• Runs up to 16 or 21 samples:
• Buffer volume: about 3,500ml;
• Size (L×W×H): 300 × 160 × 300 (mm);
• Weight: about 4.0 kg.

Applications:

• For SDS-PAGE, Native PAGE, and second dimension of two-dimensional gel electrophoresis, etc.

Remmonded Electrophoresis Power Supply:

• DYY – 10C, DYY – 12.
