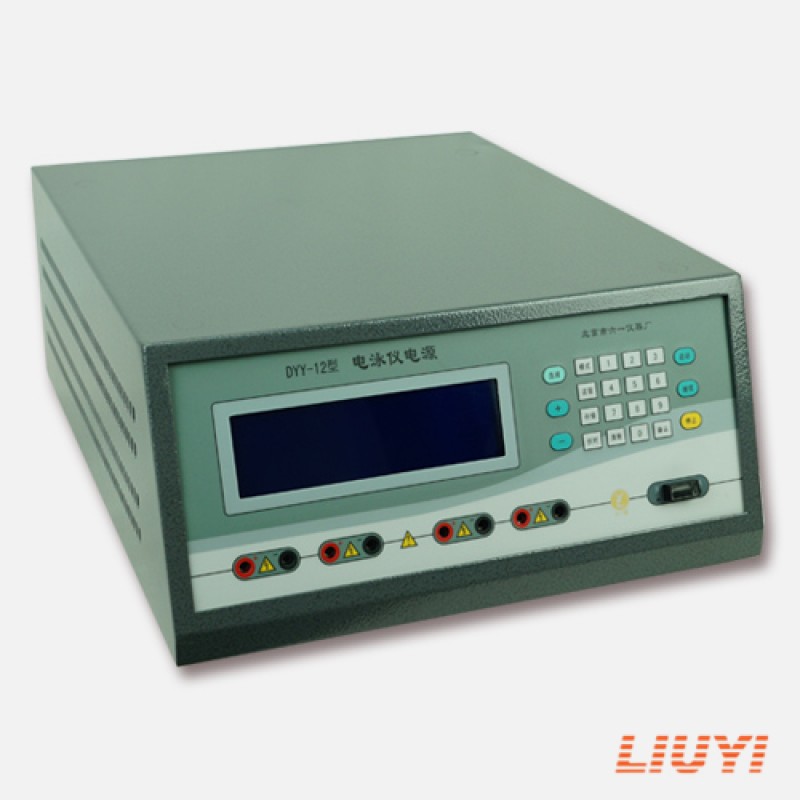

DYY-12 Electrophoresis Power Supply

Model: DYY – 12

Features:

• It is wholly controlled by micro-computer, LCD;
• High-power ON/OFF switch is the output core of DYY-12, high output power,high capability of load,high precision of the control and the high stability of the function;
• The states of constant voltage,constant electric current and constant power can be converted into one another to ensure the safety;
• It has the protection functions of over voltage,short circuit,overload,sudden load change,unloaded,leaks electricity,etc;
• It has the function of memory for convenient use and programming with a minimum of time and effort;
• Program:up to 9 different programs, each with 9 steps
• Output terminals: 4 pairs in parallel

Application:

• DNA, RNA, Protein, Agarose, DNA sequencing, Isoelectric focusing, Western blotting, Semi-dry blotting,2-dimensional electrophoresis

Specifications:

• Power source: A.C. 220V±10% (50Hz±2%);
• Input power :about 600 VA;
• Output voltage: (10 -3000)V, (Increase or decrease: 1V/step);
• Output current: (4 -400)mA, (Increase or decrease: 1mA/step);
• Output power: (4 – 400)W, (Increase or decrease: 1W/step);
• Size(W x D x H): 303 x 364 x 137 (mm);
• Weight: about 7.5 kgs.
