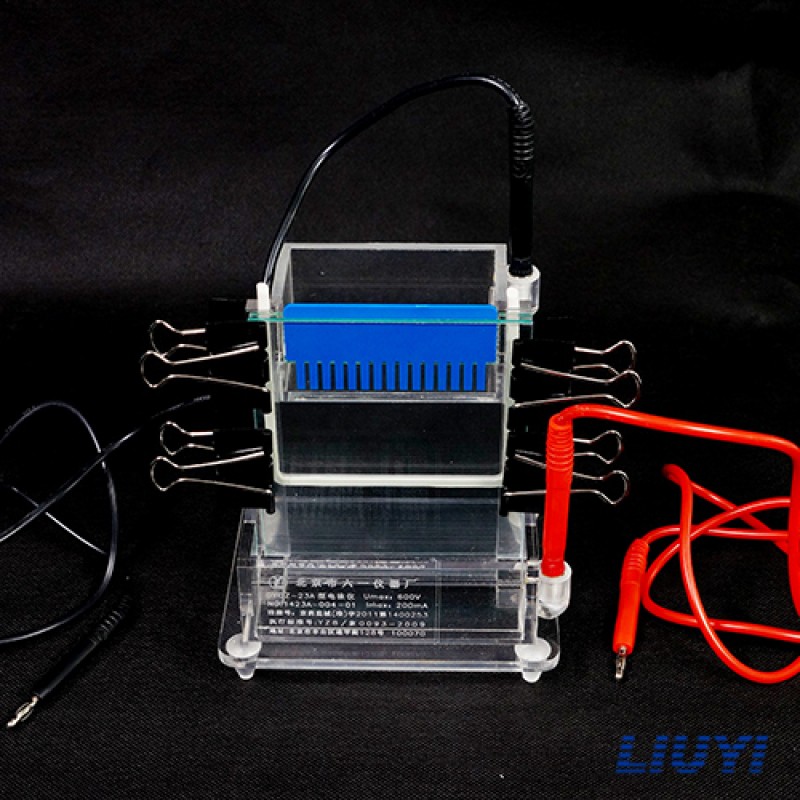

DYCZ-23A Electrophoresis Cell
Features:
- Cooling device;
- The tank body is made of the high transparent, insulative synthetic glass, and no leakage.
- Electrodes are made by pure platinum ( the purity quotient of the noble metal≥99.95%)which have the features of corrosion resistance of electroanalysis and withstand high temperature.
Specifications:
- Gel dimension (L X W): 100 × 80 (mm);
- Runs up to 11 samples;
- Comb thickness: 0.8 (mm) and 1.5 (mm);
- Buffer volume: about 350ml;
- Size (L X W X H):140×125×155 (mm);
- Weight: about 1kg.
Applications:
- For protein gel electrophoresis experiment.
- Suitable Electrophoresis Power Supply
- DYY-6C , DYY-7C or DYY-8C
