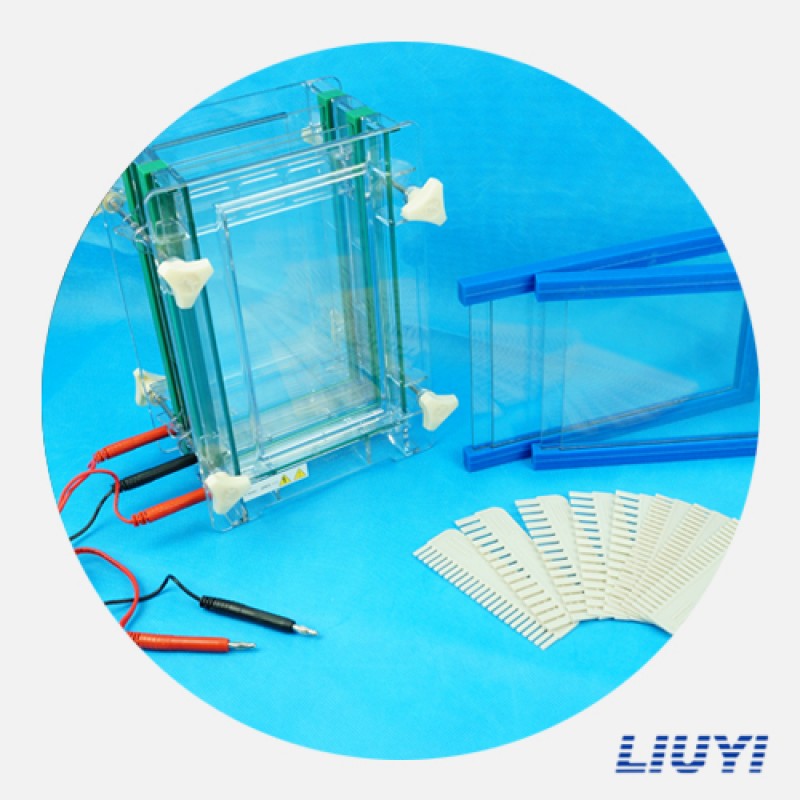

Electrophoresis Cell DYCZ-28D
Model: DYCZ – 28D
Feature:
- It has the cooling device;
- Double clamp-plates that can cast two gels at one time;
- The tank body is made of the high transparent, insulative synthetic glass, and no leakage.
- Electrodes are made by pure platinum ( the purity quotient of the noble metal≥99.95%)which have the features of corrosion resistance of electroanalysis and withstand high temperature.
Specifications:
- Gel dimension (L X W): 200 × 125 (mm);
- Runs up to 15 or 24 samples;
- Comb thickness: 1.0 (mm) and 1.5 (mm);
- Buffer volume: about 2400ml;
- Size (L X W X H):190×150×270 (mm);
- Weight: about 5 kg.
Applications:
- It is used for protein electrophoresis experiments, it is simple and easy to use, and suitable for teaching and scientific research.
Suitable Electrophoresis Power Supply
- DYY-6C,DYY-7C,DYY-8C
