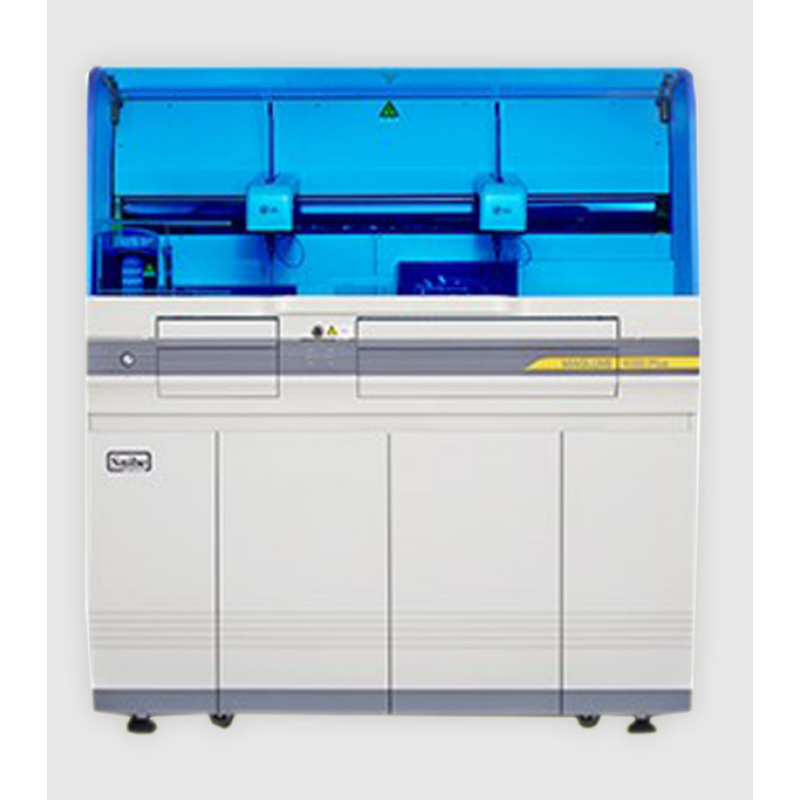

FULLY AUTO IMMUNOASSAY ANALYZER Maglumi 4000 Plus

Feature

Model	Maglumi 4000 Plus
Brand	Snibe
Usage	24 hours ready-to-use
Throughput	up to 280 tests/hour
Time to first result	16 minutes

• Specification

Principle of Luminescence

•  Non-enzyme involved flash chemiluminescence, long stability of reagents
•  ABEI label, stable in acid and alkaline solution

Modes of Operation

•  Random, Batch and STAT

Sample Loading

•  Up to 144 primary tubes
•  Continuous loading, STAT available
•  Barcode reader recognition or analyzer auto numbered
•  LIS connection, auto read sample info
•  Refrigerated sample area with independent power supply

Reagent Loading

•  25 reagents on board
•  Continuous loading
•  RFID reading all info of reagents
•  Refrigerated reagent area

Reagent Features

•  Integrated kit, ready-to-use, no pretreatment required
•  Integrated kit including calibrators
•  Using superparamagnetic microbeads
•  RFID tag storing all info of reagent
•  RFID tag with built-in master curve
•  2-point calibration to adjust master curve
•  Calibration stability: Max 4 weeks

Other Features

•  Clot detection
•  Liquid level detection for reagent
•  Optional ratio for sample dilution
•  Auto dilution for high concentration sample
•  Constant 37℃ incubation
•  15-30℃ Operating Temperature

Operation System

•  Windows 7
•  HP compatible (Dual-core CPU)
•  Color touch screen

Interconnection

•  Connection to LIS via COM or network card
•  Direct operation on LIS system to test

Dimensions Weight

•  208 x 89 x 160cm, (Monitor table extended)
•  138 x 89 x 160cm, (No Monitor table)
