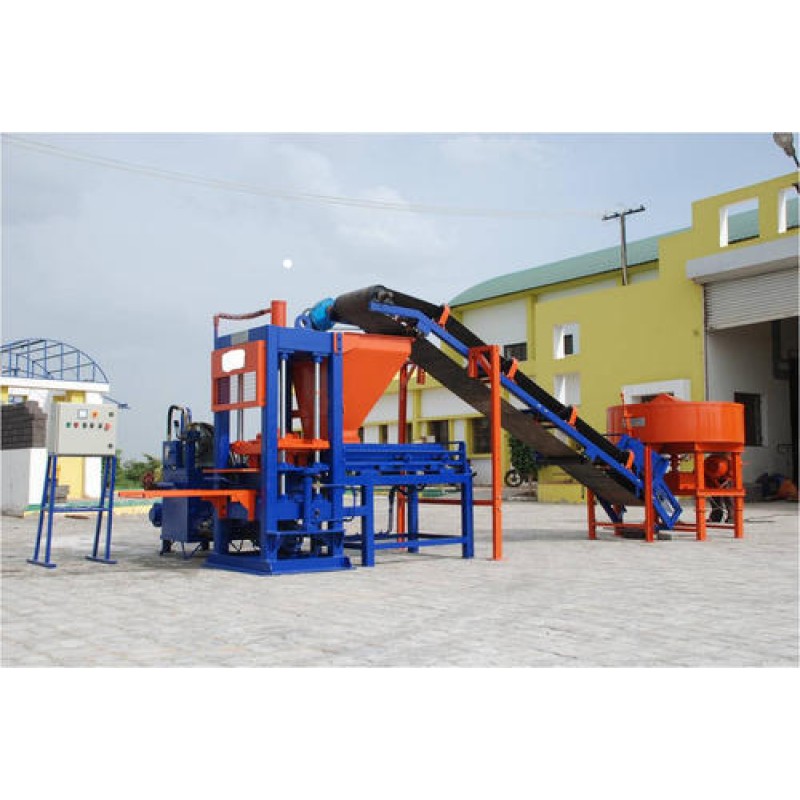

Automatic Fly Ash Brick Making Machine

WE manufacturing, trading and supplying Fully Automatic BRICK & Block Making Machine. This block making machine is used in various construction industries for block making. Our block making machine is developed from the finest quality material & contemporary techniques keeping in pace with industry norms. The offered block making machine is accessible in assorted specifications to meet the needs of the customers.


Features:

Less maintenance

Optimum performance

Low power consumption

Specifications:

Main body from HEAVY PLATES & PIPES guide rod will be chromium plated

3 Stroke in a minute

6 Pavers in a Stroke

8 bricks in a stroke


Pan Mixer Details:

Pan Ø: 1500 mm

Side wall height: 500 MM height

Bottom plate: 10 mm M.S.

Side wall plate: 4 mm M.S

Motor: 7.5 h.p ,1440 rpm 3 phase


Power (Load):

Hydraulic: 10 HP

Taper conveyor: 2 HP

Down Conveyor: 1 HP

Vibrator: 2 H.P

Pan Mixer: 7.5 HP X 2 NOS

Total Power: 30 HP


Hydraulic Cylinder:

Ramming: 1 no

Box: 2 nos

Feeder: 1 no

Wooden Pallet Conveyor: 1 no

Total: 1 nos


Conveyor Belt:

Conveyor belt thickness: 8 mm & length 22 foot


P.L.C Control:

Well designed plc control system

Auto pallet function: for hydraulic

Tank capacity for hydraulic oil: 300 litres

Single Layer Feeder box Electrical Plc control panel

Bricks removal: through 10 ft conveyor

Total weight: 3500 kg

Operating pressure: 220 bar-100 ton

Mixing rough material: from pan mixer to conveyor through conveyor to storage box, then storage box to feeder and to auto ram and box
