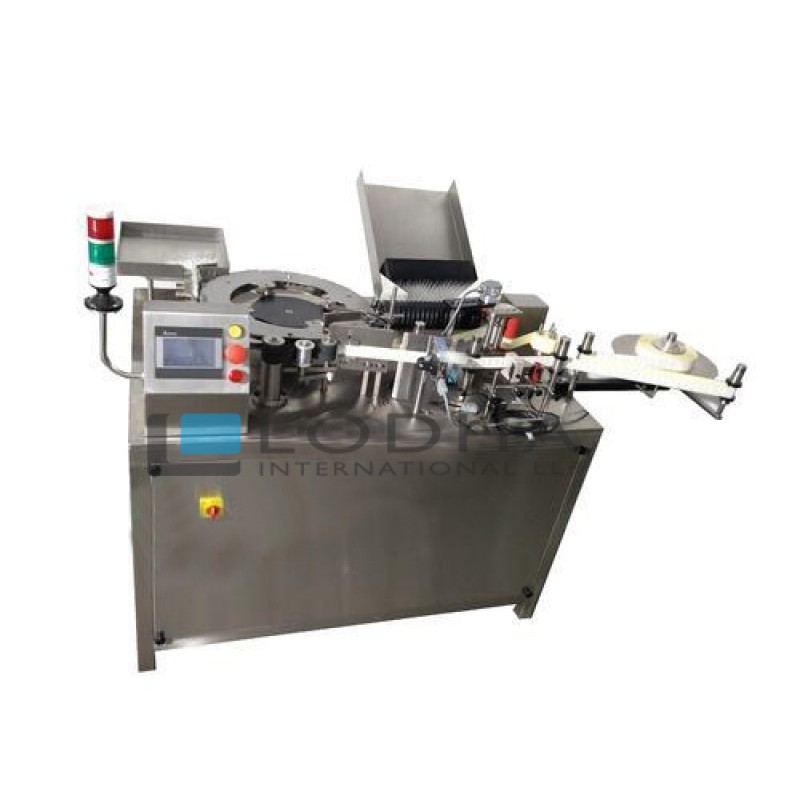

Automatic Vertical Ampoule Sticker Labeling Machine

Click Image for Gallery

Automatic Ampoule Sticker Labelling System for high speed wrap-around application on ampoules. LI-ASL 2H is one of the most users friendly. The Machine incorporates with modern Micro Processor Control Label Dispensing system with user friendly Sensing system for Label and Product. The machine is suitable for Labeling on Round Vials, and other round Objects. It is capable of Labelling up to 200 units per minute depending on products and label size. Specially designed electronic and mechanical system to apply transparent (No Look) Labels on Vials at very high speed using optional special label sensing system.

Truly one and only High-Speed Rotary Warp Around Labelling Machine available in India, with unique single point synchronized speed control system. The Inbuilt Automated Label Length detection systems eliminates any need for manually feeding and storing of Label Length data in memory and retrieving the same every time for change of Label Size & re-starting the machine. The System thus saves valuable time, avoiding machine-down time, and helps achieve higher production.

Machine with highest installation in India. Machine have added advantages like Special Feeding Device enabling feeding of Ampoules/Vials in Vertical Position directly from the trays and similarly collecting the labeled products also in Vertical Position in trays. Operator can also feed the Ampoules/Vials for Labeling On-line on Machine without any stoppage. The feeding system effectively eliminates clumsy, inconvenient, time consuming and prone to breaking of Ampoules etc. at the time of loading the products for labeling compare to other Slant Hopper Feeding system.

Machine also available with optional Turn Table for Feeding of Vials for online transfer of Ampoules from Capping/Inspection machine to labeling and online transfer of labeled vial to packing conveyor/inspection system, this system helps for continues labeling operation for vials.

This system belongs to the LODHA Pharma line, especially dedicated to labelling, coding, serialization and track and trace of pharmaceuticals; this line has been designed to ensure high standards of quality, safety, productivity and maintenance complying with the guidelines for good manufacturing practice of pharmaceutical markets.

Special Features:

§ No Label Data Input/retrievals require for any Label Size

§ Color Touch Screen Operator panel

§ No Change Parts for Label size

§ Single Pot On-line Speed Variation control

§ Synchronized speed of Label Dispensing, Product Feeding and Pressing Device

§ Virtually Maintenance free machine

§ Easy to change label application height

§ User Friendly Label Placing Adjustments

§ Self-Protected against Voltage Fluctuations

§ Suitable for On-Line Inkjet and Contact Coding System

§ Suitable for Partial, Full Wrap Around and Overlap Labeling

§ Built in A.C. Variable Frequency Drive System.

§ Fully Stainless-Steel Finish Machine

Additional Features:

§ Label Roll Empty - Machine Stop System with Alarm

§ Missing Label in Roll - Machine Stop System with Alarm

§ Special Label Sensor for sensing Transparent Film Labels which does not have any sensing mark on it.

§ Option of Contact Coder, Hot Foil Coder, HP Cartridge Coder and Inkjet Coder with various speed range available.

§ Toughened Glass or Acrylic Safety Cabinet for Machine

§ Tower Light showing the machine status / operation

§ Color Touch Screen PC synchronizing Machine operation and Vision System

§ Special Sensing system for checking missing label on product

§ Low Compressed Air - Machine Stop with Alarm system for pneumatically operated coding system

§ Vision System for checking Barcode, presence or absence of Coding or Pharma code on labels

§ Vision System with OCV/OCR system for checking coding on labels

§ Online pneumatically operated product rejection system

§ Turn Table for online operation of Vial Labeling

Technical Specification

Mode No.

LI-ASL 2H

Label Height

8 mm to 50/70/90 mm Standard*

Label Length

12 mm Minimum

Label Roll Dia

400 mm

Core Dia

75/76 mm

Gap Between two Labels

Approx. 3 mm

Product Diameter

Up to 25 mm*

Electrical

220 VAC Single Phase Power Supply (50/60 Hz)

Power

2.5 Amp.

Capacity

0.75 Kw

Speed

Up to 250 Labels per minute, Labeling Machine speed also depending on Product and Label Size

Product Feeding Belt height

850 mm*

Overall dimension

1800 mm(L) X 1350 mm(W) X 1100 mm (H)

With T.G. Cabinet

1800 mm(L) X 1350 mm(W) X 1500 mm (H)

* Specification can be changed as per customer’s requirements
