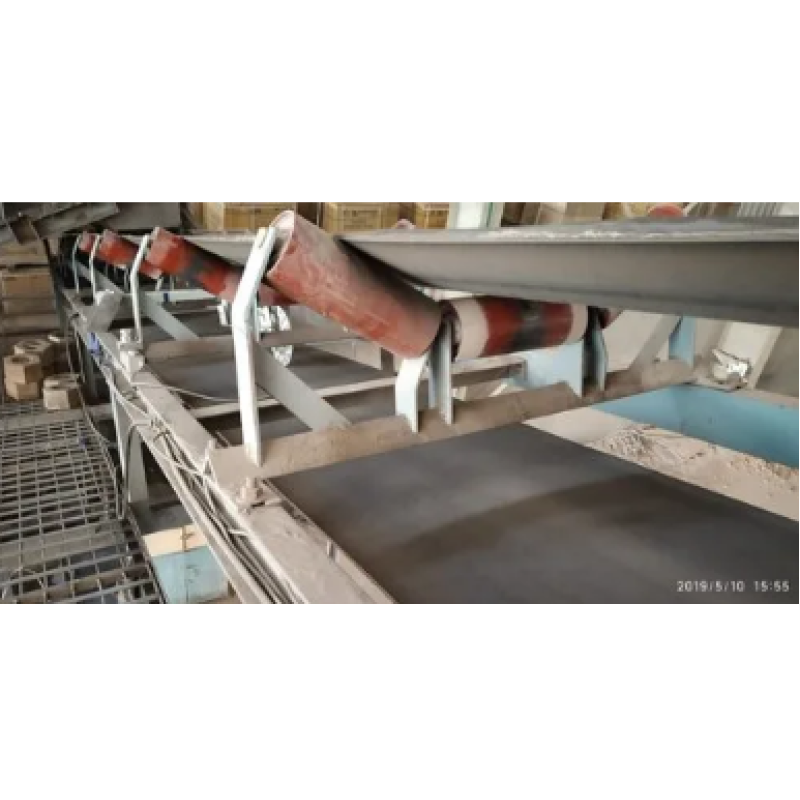

Belt And Conveyor Weighing System

Type	Automatic
Brand	WSI
Model Number/Name	BW-04
Power Consumption	5W
Application	Conveyor weighing
Flow Rate	1tph to 30000tph
Operation	Automatic
Analog Output	yes
Display Type	LCD
Number Of Channel	1

Our competency lies in offering our clients an optimum quality assortment of Belt And Conveyor Weighing System.

Specifications:

• Belt Width: 300 mm to 2000 mm
• Capacity: 300 TPH to 3000 TPH
• Accuracy: +/- 0.25% Single Weigh Module
• +/- 0.125% Two Weigh Modules
• +/- 0.1% Four Weigh Modules

Features:

• Inherently stable and rugged design
• Full floating weigh frame
• Overload Protection stops
• Modular weight controller system
• Customizable display
• Display to weighing unit ration of one to many
• Simple calibration procedures
• Easy menu based programmable settings
• Automatic belt zeroing
• Analogue Output
• Pulse Output

Available in:

• Standard Width
• Customized Width
• Single Idler Configurations
• Multi Idler Configurations
• Stable full floating weigh frame design

There are three major elements of our BW-01 System:

• The weighing assembly with very high precision load cell in it
• The belt speed sensor with digital photo electric sensor
• The digitizer with RS-232/ RS-485/ USB / 4 - 20 mA or 0 - 10 V DC outputs

Additional Information:

• Delivery Time: 2-4 weeks
