By Pass Hydraulic Filter

The Kleenoil "high pressure" oil filter can be fitted on the "by pass" basis to hydraulic systems, compressors, or any system with oil at pressure up to 3000psi. The flow through the Kleenoil filter is controlled to approx. 4ltrs per minute at 40psi. A flow rate which is low enough to have negligible effect on most "system pressures", yet high enough to ensure that oil is being kept in "as - new" condition.

More than 70% of Hydraulic Failures are caused by contaminants in the oil

Salient Features:

• Removes contaminant particles down to less than 0.5 microns -

• Removes water content from oil to less than 0.25% up to capacity of cartridges

• Prevents corrosion of components

• Reduces component wear (seals, piston rods, pumps etc.)

• Extends life of in-line OEM filters and components.

• End to the need to change hydraulic fluids

• All properties of oil being cleaned are maintained

• Filter cartridge can be changed within minutes.

• Can easily be removed and re-installed on replacement equipment

• Can be used with virtually any petroleum/synthetic based oil

• Used in transport and industry world-wide

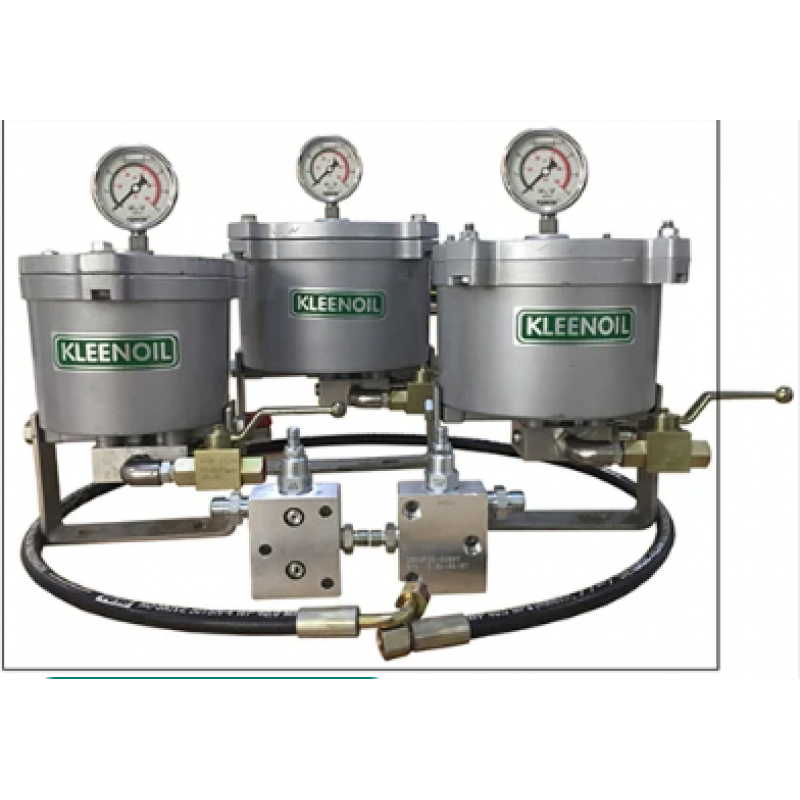

The Kleenoil Hydraulic Block is mounted to the bottom of the Kleenoil Bypass Filtration System to convert the lower pressure bypass engine oil filter to a high pressure hydraulic fluid filter.

There are three ports on the valve block as listed:

• Port 1: Low Pressure output approximately 50 PSI normally is blanked off but may be used to supply another filter housing
• Port 2: High pressure input up to 3000 PSI
• Port 3: Return to hydraulic reservoir. This port is fitted with adaptors size No. 6 JIC and it is important that the return hose is of at least 3/8" bore
