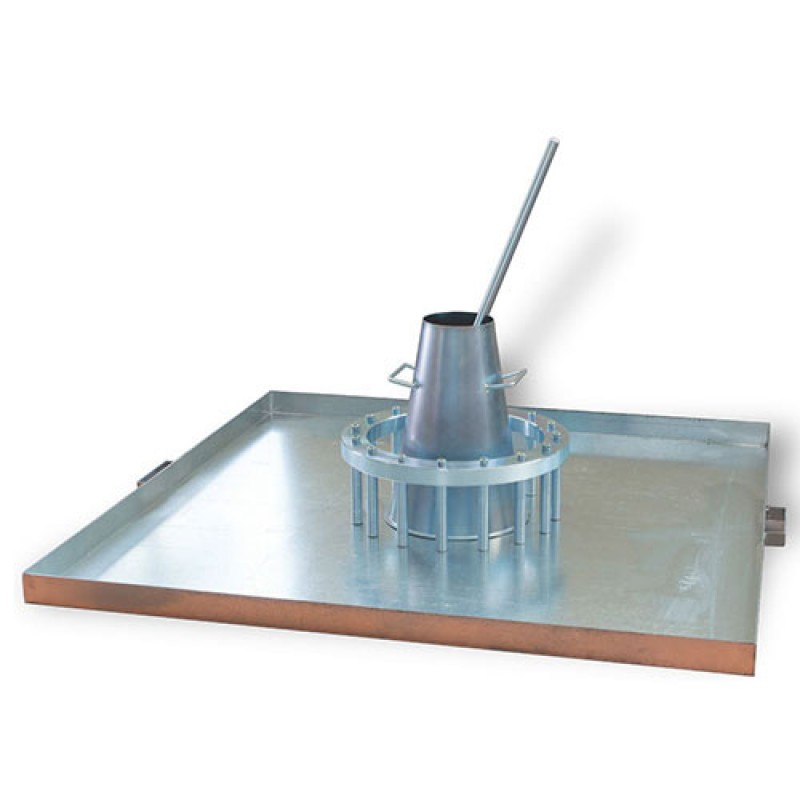

J - Ring, Narrow Gap

Model No.: SMEW-0080

Standards: EN 12350-12

Specification: The J-Ring test is used for determining the passing ability, the flow spread and the flow time of self compacting concrete as the concrete flows through the J-Ring apparatus. The J-Ring narrow gap with ø18 mm x 16 smooth bars is manufactured from stainless steel.

The Slump Cone is made from sheet steel protected against corrosion, with diameters; top 100 mm, base 200 mm and with a height of 300 mm. The Base plate is 900x900x3 mm square, made of stainless steel with engraved circles of 200 mm and 500 mm diameter conforming to EN 12350- 8.

The Steel weighted collar is used to stabilize the slump cone on J-Ring or slump flow tests.

Minimum apparatus for the J-Ring test are J-Ring with narrow gap and slump cone.

SMEW-0080 J-Ring, narrow gap

SMEW-0080 Slump cone for J-Ring

SMEW-0080-A Base plate for J-Ring and slump-flow tests

SMEW-0080-B Steel weighted collar, 9 kg

SMEW-0080-C EN 12350-8 for slump cone on J-Ring or slump flow test
