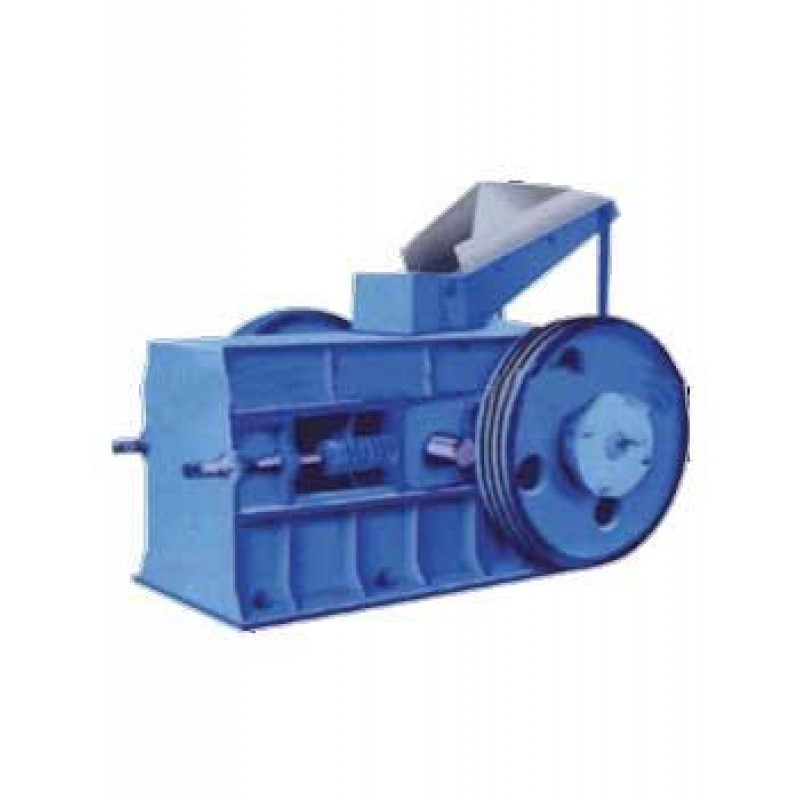

Large Roll Crusher
Product Details:
| Roller size | 150 mm and 250 mm |
| Motor Power | 5.0 H.P |
| Voltage | 440 V 50Hz |
| Material | Steel |
| Capacity | 5-80 t/h |
| Motor Type | AC |
Large Roll Crusher comprises of two hardened alloy steel rollers. The rollers are fitted to a steel shaft and are mounted on heavy duty gunmetal bearings. The outside bearings are provided with heavy duty compression springs. Which help in increasing the space between the rolls, when a piece of material cannot be crushed. The drive is by a heavy motor, through 'V' belts, to a set of gears and further to the rollers. A hopper is provided for feeding the material.
Additional Information:
- Item Code: ASI-237
Large Roll Crusher
- Views: 49
-
A. S. I. Sales Pvt Ltd - Product Code: ASI-237
- Availability: In Stock
- ₹0
Seller information
A. S. I. Sales Pvt Ltd.
- A. S. I. Sales Pvt Ltd.
- New Delhi, Aaland Islands
- Business Type :Trader, Exporter, Manufacturer
