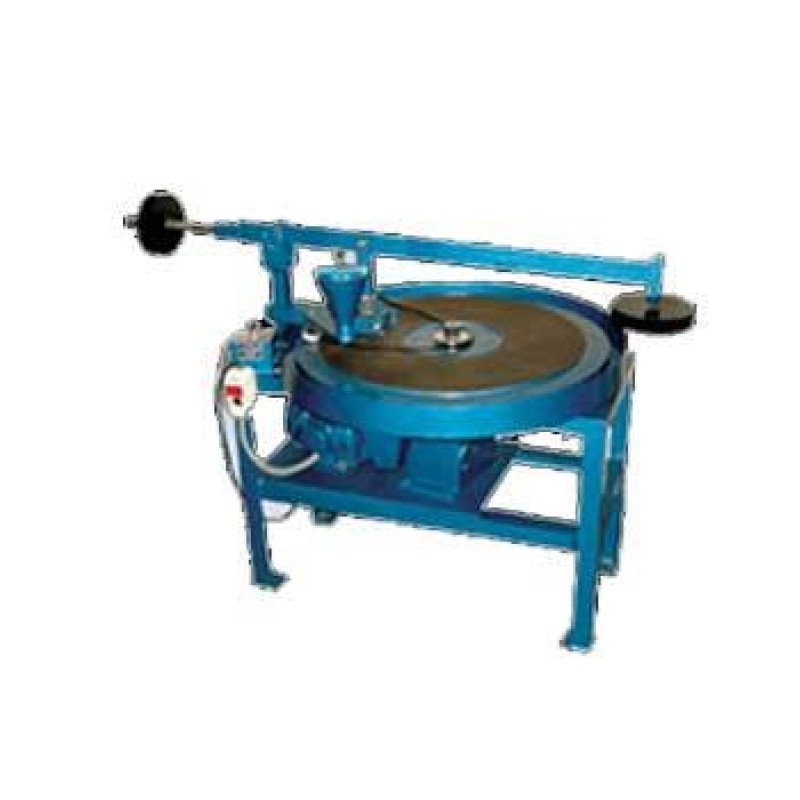

Tile Abrasion Testing Machine

Tile Abrasion Testing Machine is used for determination of resistance to wear for cement concrete flooring tiles. Tiles is pressed tace-wise under specific load on a grinding path and abrasive powder is evenly spread on the rotating grinding path and after specific number of revolutions of the grinding disc the second parallel side of the tile is subjected to wear for similar number of rotations. The wear of the tile is measured on a thickness gauge specifically made fro the purpose.

A bracket is provided to hold the specimen. A counter balance lever loads the specimen. A funnel is fitted to evenly spread abrasive powder on the grinding path. A pre-set counter automatically stops the machine after 22 revolutions. This counter is re-adjustable.

Additional Information:

• Item Code: ASI-645
