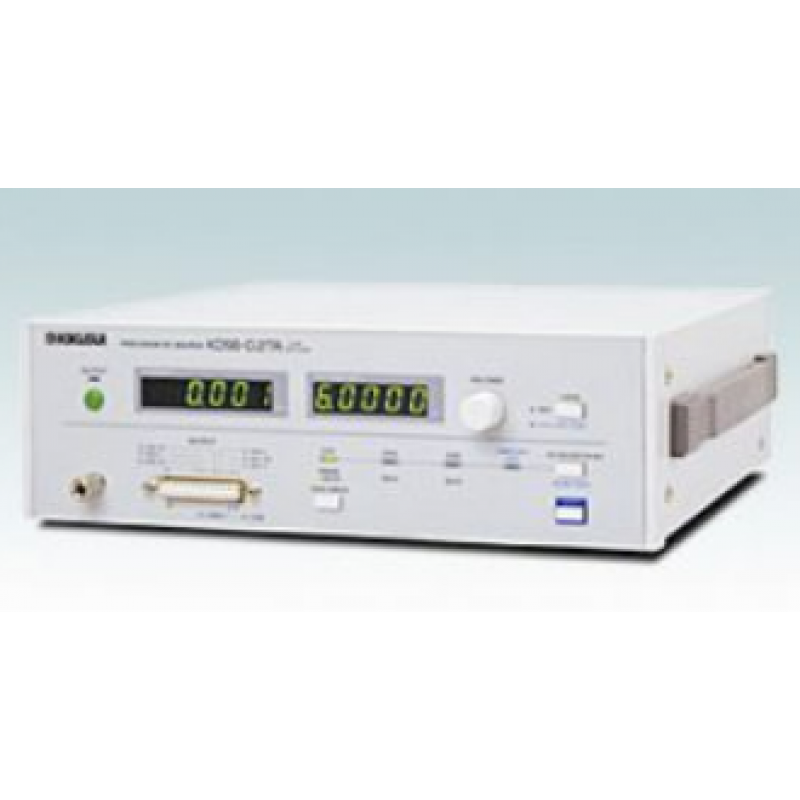

DC POWER SUPPLIES KDS6-0.2 TR
Outline
KDS6-0.2TR is designed for use on production and inspection lines for high-frequency components capable of low supply current and low voltage operation that have become dominantly popular in recent years, as well as for a variety of electronic devices such as ICs, LSIs, and sensors.
This product is a low-noise, highly stable DC voltage power supply with 3-channel output.
This product is a low-noise, highly stable DC voltage power supply with 3-channel output.
Features
- 3-channel voltage standard
CH1: 0 to +6 V/200 mA
CH2: 0 to +6 V/30 mA
CH3: 0 to +6 V/30 mA (COM of 3-channel in common) - Remote sensing function that compensates for voltage drops at the output terminal
- Best suited to operation tests for VCO and many other types of sensors
- Voltage setting resolution of 100 µV (allows a different voltage to be set independently for each channel)
- Current reading resolution of 0.1 µA* (in standard mode)
* 1 µA resolution for the 200 mA - Ripple noise level lower than 100 µVrms, thus supporting measurements of high-sensitivity devices
- 3-channel voltage standard
CH1: 0 to +6 V/200 mA
CH2: 0 to +6 V/30 mA
CH3: 0 to +6 V/30 mA (COM of 3-channel in common) - Remote sensing function that compensates for voltage drops at the output terminal
- Best suited to operation tests for VCO and many other types of sensors
- Voltage setting resolution of 100 µV (allows a different voltage to be set independently for each channel)
- Current reading resolution of 0.1 µA* (in standard mode)
* 1 µA resolution for the 200 mA - Ripple noise level lower than 100 µVrms, thus supporting measurements of high-sensitivity devices
