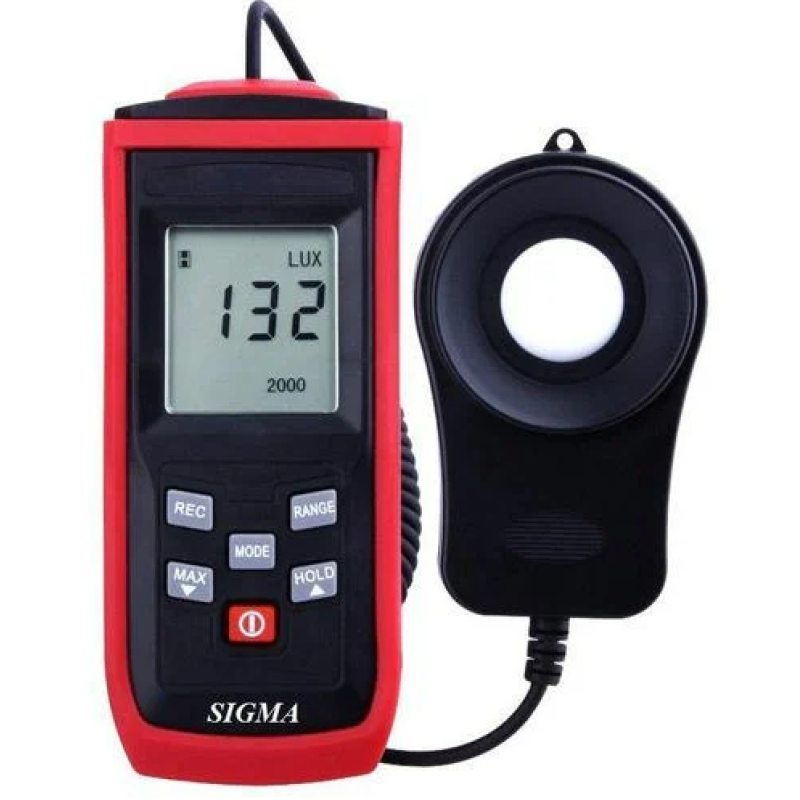

Digital Lux Meter
Technical Specification:
RANGE 0 to 2,00,000 Lux in auto range of 0 to 199.9, 200 to 1999, 2000 to 20000 and
20000 to 2,00,000 Lux. ( Auto range) ACCURACY ± 3% rdg ± 10 dgt < 10,000 Lux,
± 4% rdg ± 10 dgt > 10,000 Lux, RESOLUTION 0.1 in the range of 0 to 200 Lux.
1 in the range of 0 to 2000 Lux.
10 in the range of 0 to 20000 Lux.
100 in the range of 0 to 2,00,000 Lux. DATA HOLD Data hold facility is provided. DISPLAY 31⁄2 Digit, 7 segment LCD type of 12.5mm height.
X10, X100, data hold and low battery indications are provided SENSOR Separately attached light sensor allows user to take measurements at an optimum
position. Size 87mm(L) x 55mm(W) x 20mm(H) POWER
REQUIREMENTS Two AAA batteries SIZE & WEIGHT 128mm(L) x 55mm(W) x 30mm(H). 130 gms STANDARD
ACCESSORIES Battery, instruction manual and carrying case.
RANGE | 0 to 2,00,000 Lux in auto range of 0 to 199.9, 200 to 1999, 2000 to 20000 and 20000 to 2,00,000 Lux. ( Auto range) |
ACCURACY | ± 3% rdg ± 10 dgt < 10,000 Lux, ± 4% rdg ± 10 dgt > 10,000 Lux, |
RESOLUTION | 0.1 in the range of 0 to 200 Lux. 1 in the range of 0 to 2000 Lux. 10 in the range of 0 to 20000 Lux. 100 in the range of 0 to 2,00,000 Lux. |
DATA HOLD | Data hold facility is provided. |
DISPLAY | 31⁄2 Digit, 7 segment LCD type of 12.5mm height. X10, X100, data hold and low battery indications are provided |
SENSOR | Separately attached light sensor allows user to take measurements at an optimum position. Size 87mm(L) x 55mm(W) x 20mm(H) |
POWER REQUIREMENTS | Two AAA batteries |
SIZE & WEIGHT | 128mm(L) x 55mm(W) x 30mm(H). 130 gms |
STANDARD ACCESSORIES | Battery, instruction manual and carrying case. |
