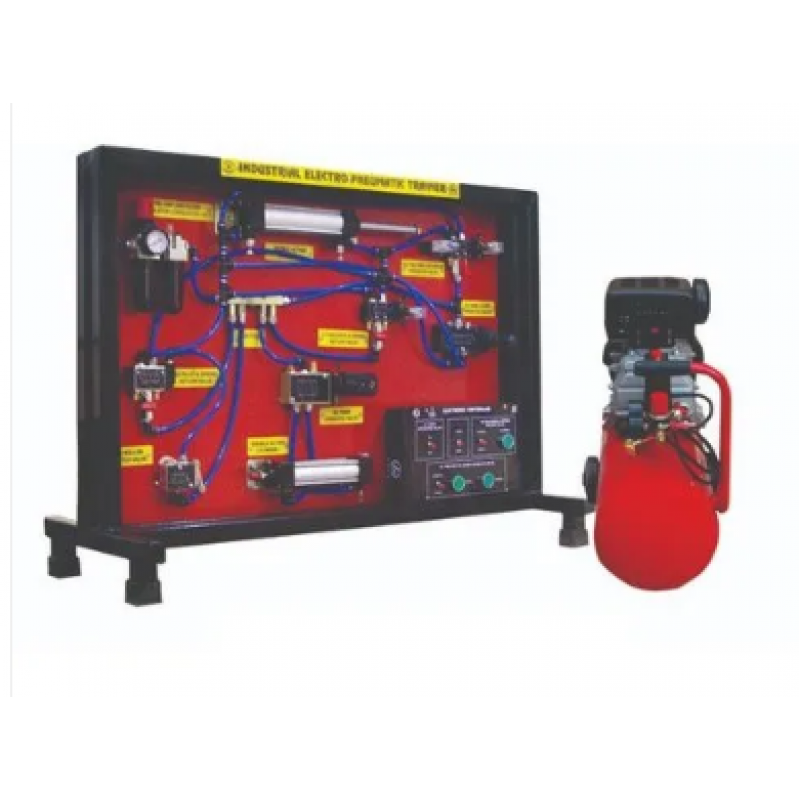

Electro Pneumatic Trainer

Product Details:
Objective:
· Study of different type of pneumatic components & their application (Manual and Automatic Control)
· Study the extension and retraction of double acting pneumatic cylinder by different control valves
· To study the sequencing operation of double acting cylinders using 3/2roller switch, timer operated valve & 5/2 pilot & spring control valve
· Solenoid control operation experiments for controlling the cylinder can be done using micro controller

Technical Specification:
· Pneumatic Components
· Air compressors with following features
· Displacement 3cfm
· Working pressure 0- 10kg / cm2 (10 bar)
· Capacity of cylinder 180 Psi
· 1HP Electric motor 230V, 50Hz, Auto cut facility
· 0 -10 Bar Pressure Gauge & Shut off valve with suitable hose and end connector
