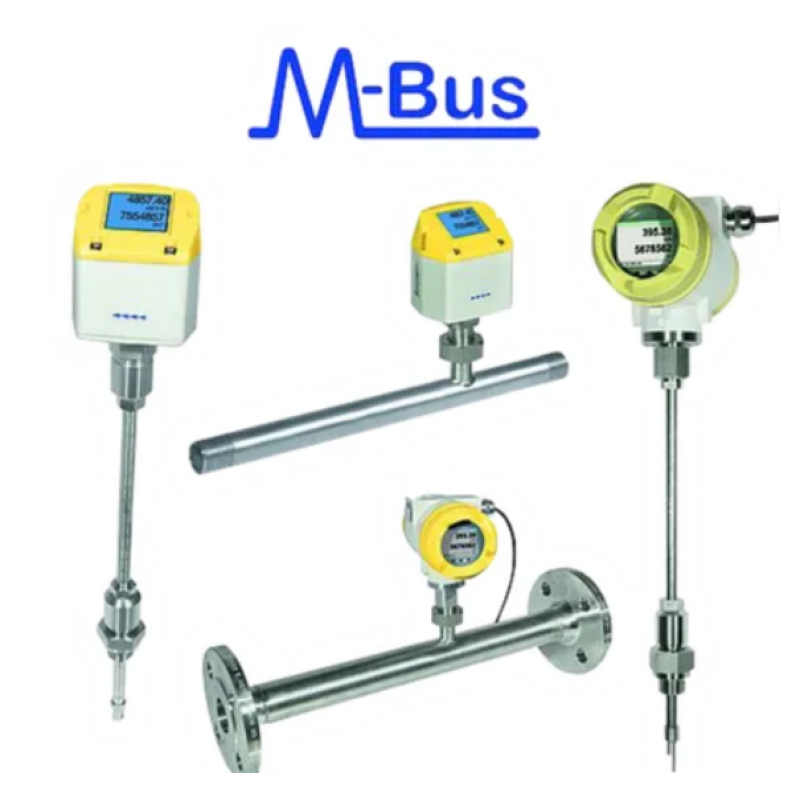

Flow Meter for Heavy Duty Industrial Applications
Product Details:
Usage/Application | Natural gas, biogas, methane, nitrogen, argon and carbon dioxide. |
Model Name/Number | VA 520,VA 500,VA 550 and VA 570 |
Measuring Range | 90 l/min,90 m3/h,170 m3/h,290 m3/h,530 m3/h,730 m3/h,1195 m3/h,2050 m3/h,2840 m3/h. |
Measuring Section | From 1/2 inch to DN 400/ DN 500. |
Features | Removable measuring head,Screwing with centering device,Screwing with centering device |
Flow meter for heavy duty Industrial applications are also ideal for conversion or retrofitting and for new installations of gas meters, compressed air meters, flow meters, etc. to existing or new energy management software according to DIN ISO 50001 and DIN ISO 16247 and building management systems.
The M-Bus meters have been metrologically improved and completely revised and in addition to the mandatory M-Bus interface also have the following additional outputs and bus systems:
Modbus RTU, Modbus TCP or TCP PoE, Profibus, Profinet, 4..20 mA and pulse Hard (in preparation).
