HP50 Magnetic Filter

Brand	Kleenoil India
Dimension	138 x 247 x 116 mm
Capacity	1 Kg
Magnet Grade	N45 - Inspected & confirmed via hystergraph prior to use
Model Number	HP50
Port Size	1" BSP
Max Flow Rate	70 L/min
Max Pressure	50 Bar
Magnetic Performance	High intensity
Temperature	5 deg C
Housing Material	Aluminium
LID Material	Aluminium
Tube Material	Stainless Steel (SS 304)
Surface Finished	Machined and anodized
Sealing	Viton O-ring

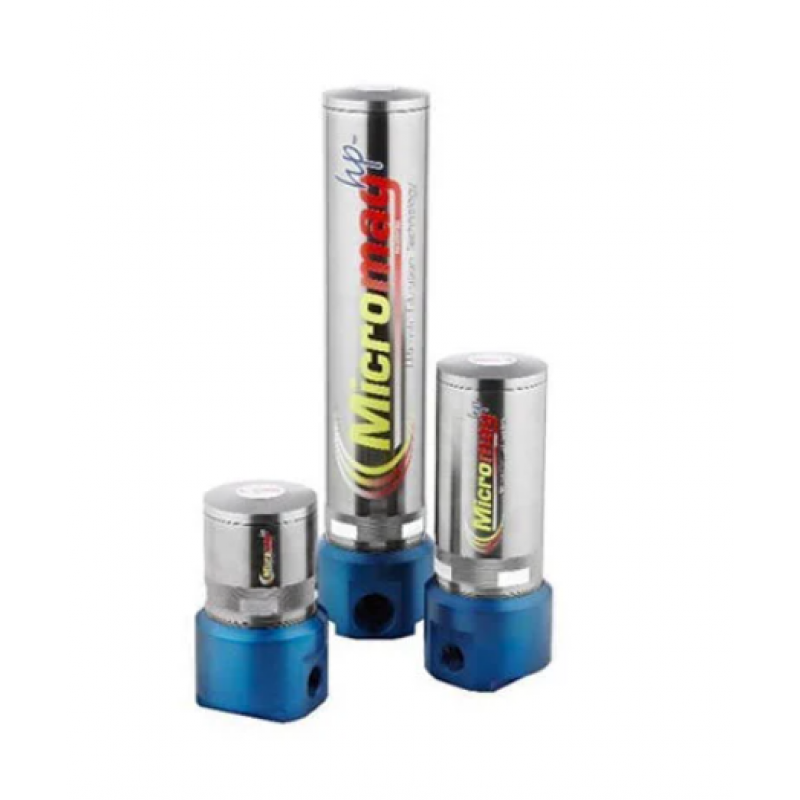

The Micromag HP50 has all the same benefits of the standard Micromag but has been developed to suit high pressure through-spindle-coolant applications, where the smallest of particles can damage seals, spindles and even reduce the efficiency of the cutting tool.

Micromag HP50 can be installed anywhere in the fluid delivery system and will ensure that even sub-micron magnetic and para-magnetic particles are removed before they can cause any expensive damage.

For further information relating to the benefits and operation of the Micromag HP50 please refer to the supplied standard Micromag brochure.

Cleaning

• Using the supplied cleaning tool, a fully contaminated core can be cleaned in under 30 seconds. Only metallic particles are removed from the filter and these can be easily disposed. There are no dirty cartridges.
