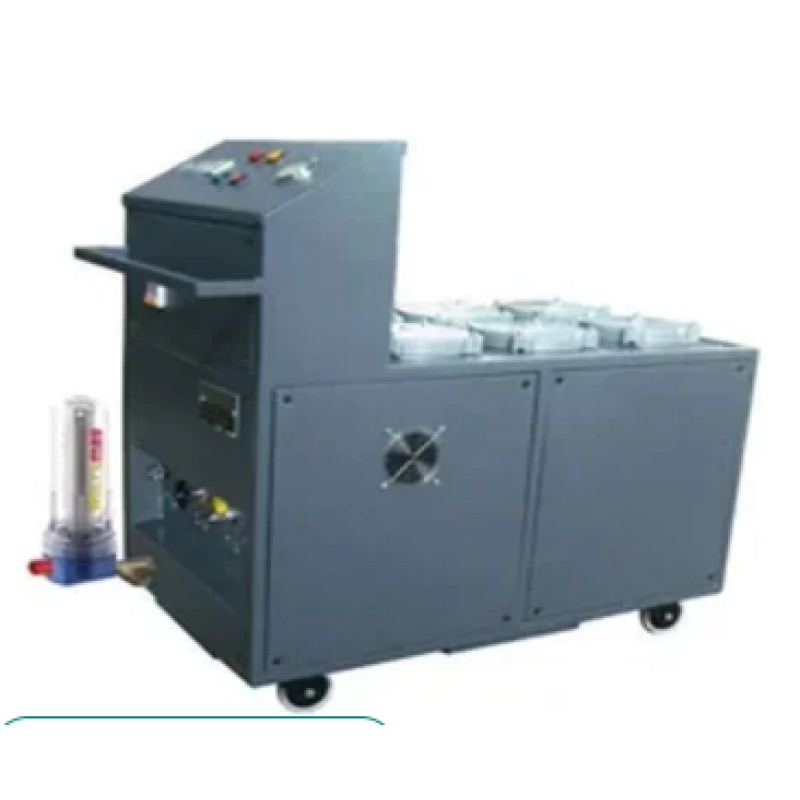

Hydraulic Oil Filtration Machine
Brand | Kleenoil India |
Weight | Approx 120 kg |
Phase | Three Phase |
Flow Rate | 1200 LPH |
Dimensions (mm) | 1200X700X1100 mm |
Suitable for Tank | Upto 8000 L |
Motor Power | 0.75 KW/1.0 HP |
Voltage | 415 KV |
Motor Speed | 1450 rpm |
Warranty | 12 Month |
Model Number | MFS 6XSDU9788 |
Contamination in the form of water, particulate, metal shavings, or tramp oil builds up over time and will compromise the finishing quality of the cutting oil. Problems of unacceptable processed parts, excess chips in the"cutting zone", increased process friction & elevation in process temperature.
Sailent Features
- Stops emulsions from being formed in the modern high-quality oils
- Removes all water from the oil in the lubricating system from the oil before it causes permanent damage
- Magnetic filter attached to machine, prevent ferrous particles from flowing into reservoir and back to the work piece
- This system filters, de-aerates and purifies the turbine oil
- Core-magnet fitted to existing filter units
Applications
- Most effective system for cleaning Stamping Oil / Anti Rust Oil being used in Press Shops
- Pipe Manufacturing Companies
- Honing oil
- Lapping oil
- Grinding Oil
- Neat cutting oil
- Steel Wire Manufacturing companies etc
Additional Options:
- Eclipse magnetic filter
- Particle counter
Oil Flow Rate
- Output levels are dependent on viscosity, temperature, degree of contamination, and oil pressure
