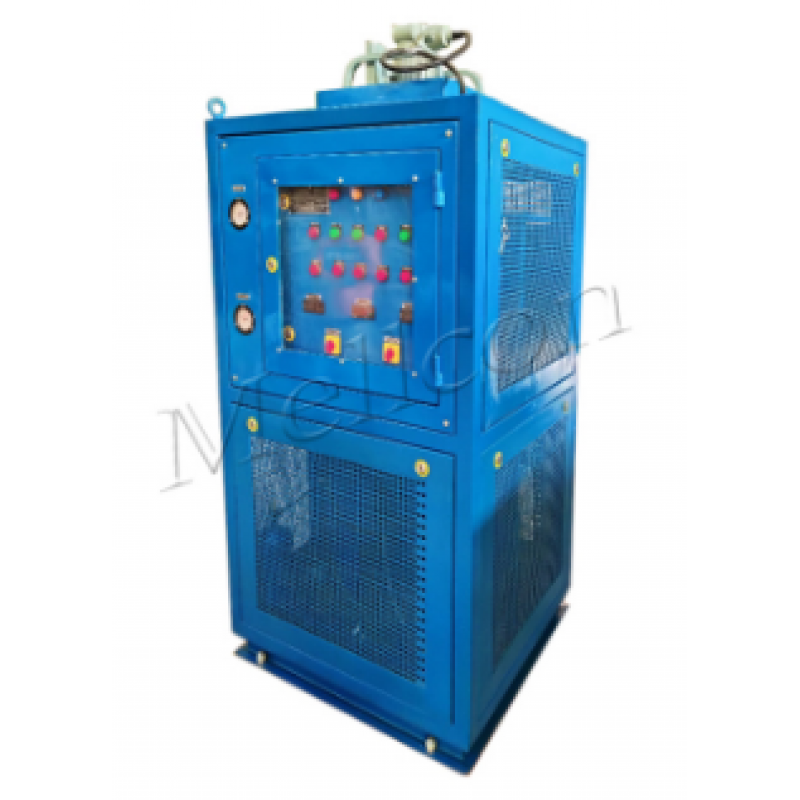

Hydrogen Gas Dryer
Mellcon Engineers offer quality Hydrogen Gas Dryers to ensure low humidity levels continuously inside the Generators in Power Plants. Manufactured from the premium quality raw materials our Hydrogen Gas Dryers are highly durable and reliable. Hydrogen Gas Dryers provided by us are highly efficient, thus needs less energy and provides excellent performance. Hydrogen Gas Dryer is easy to use and install.
Mellcon Engineers offer quality Hydrogen Gas Dryers to ensure low humidity levels continuously inside the Generators in Power Plants. Manufactured from the premium quality raw materials our Hydrogen Gas Dryers are highly durable and reliable. Hydrogen Gas Dryers provided by us are highly efficient, thus needs less energy and provides excellent performance. Hydrogen Gas Dryer is easy to use and install.
Hydrogen Gas Dryer (Refrigerated Type)(Moisture Upto -20 Deg.C ADP)
- Capacity 40Nm3/Hr to 60 Nm3/Hr
- Op. Pressure 3.5 kg/cm2g to 7.0 Kg/cm2g
- Capacity 40Nm3/Hr to 60 Nm3/Hr
- Op. Pressure 3.5 kg/cm2g to 7.0 Kg/cm2g
Operation
The system comprises two heat exchangers, the hydrogen shell and tube type called pre-cooler in which temperature of hydrogen reduces around 25-30 (Deg C. ).
The cooled hydrogen now enters the second heat exchanger named evaporator, further cooling upto 0-3 (Deg.C) is accomplished in this hence the set dew point is adjustable. The cooling coil inside the evaporator have propelled through a refrigeration system due to low temperature in the evaporator. The moisture in the hydrogen condences and converts in water form. The water is collected in a well protected condensate collector and can be drained out when desired leaving the evaporator. Hydrogen again travels to pre-cooler where it has dual function of cooling and outgoing leaving dry hydrogen again rises to a safe temperature Hydrogen of around 25-40 (Deg C.)
Application Advantage 1. Hydrogen gas coolent treatment in power industry 1. Energy efficient 2. To maintain low humidity level inside the Generator. 2. Compact in size
The system comprises two heat exchangers, the hydrogen shell and tube type called pre-cooler in which temperature of hydrogen reduces around 25-30 (Deg C. ).
The cooled hydrogen now enters the second heat exchanger named evaporator, further cooling upto 0-3 (Deg.C) is accomplished in this hence the set dew point is adjustable. The cooling coil inside the evaporator have propelled through a refrigeration system due to low temperature in the evaporator. The moisture in the hydrogen condences and converts in water form. The water is collected in a well protected condensate collector and can be drained out when desired leaving the evaporator. Hydrogen again travels to pre-cooler where it has dual function of cooling and outgoing leaving dry hydrogen again rises to a safe temperature Hydrogen of around 25-40 (Deg C.)
| Application | Advantage |
|---|---|
| 1. Hydrogen gas coolent treatment in power industry | 1. Energy efficient |
| 2. To maintain low humidity level inside the Generator. | 2. Compact in size |
Hydrogen Gas Dryer
- Views: 36
- Vendor: Mellcon Engineers Pvt. Ltd.
- Vendor Type: Manufacturer, Distributor, Supplier
- Product Code: MEP-0000014
- Availability: In Stock
- ₹0
