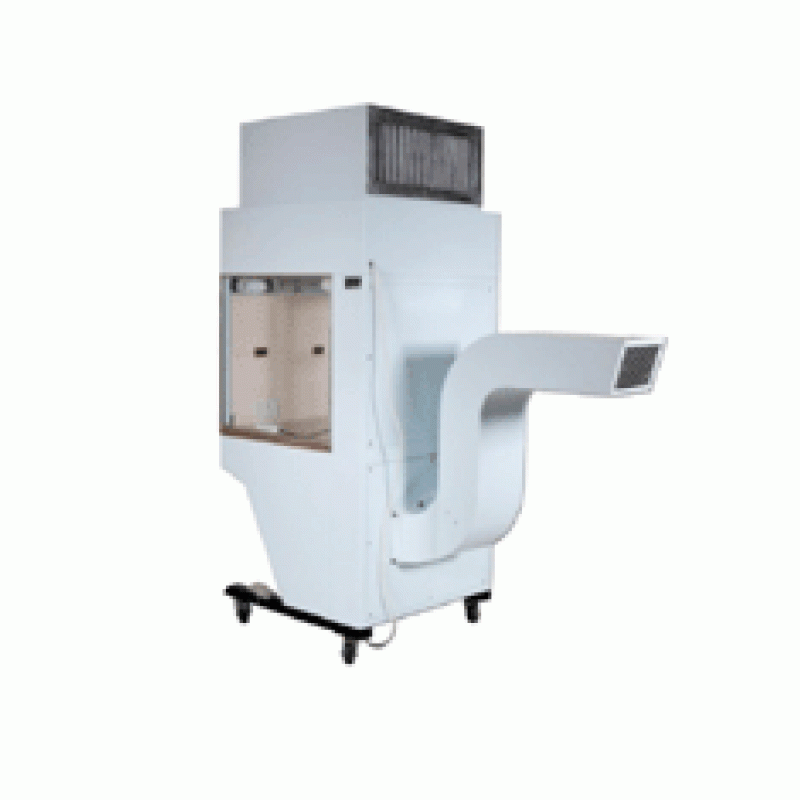

BIOSAFETY CABINET
General Specifications :
Biosafety Cabinet is as per the Guideline laid down by U.S. National Institute of Health and The Specification of British
Standard 5726 & Equivalent Standards – Appendix A for Class II Type B2 Biological Safety Cabinet.
Constructions :

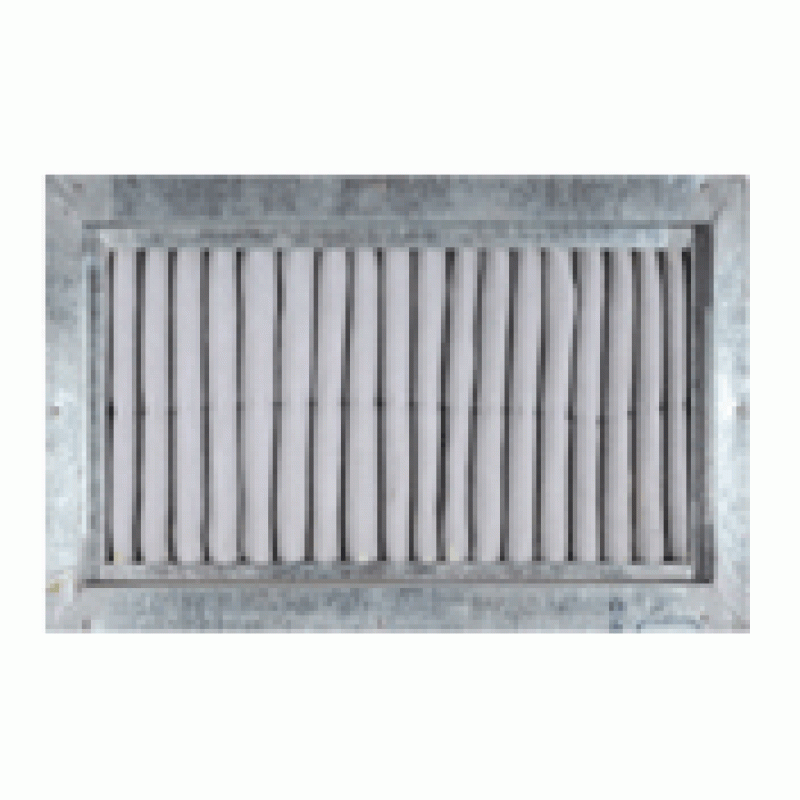

The Biological safety Cabinets are fabricated out of thick 16 SWG MS Sheet. Interior surface are epoxy painted for its longer life.The work table is made of Stainless Steel grade 304 (SS). Side panels are made out of thick transparent UV plexi glass duty framed & Transparent front door, adjustable & removable made out of transparent acrylic sheet. The unit is fitted with pre-filter and HEPA (High Efficiency Particular Air) filters having efficiency rating as high as 99.99% with cold DOP and 99.97% with hot DOP, air-borne particles of size down to 0.3 micron.
Biosafety Cabinet is fabricated out of thick 20 SWG MS Sheet. Interior surface are epoxy painted. The work table is made of
Stainless Steel. Side panels are made out of thick transparent plexi glass duly framed & transparent front door which is adjustable & removable. Using a dynamic balancing machine, the blower & motor assembly is statically and dynamically balanced. Motor of ¼ H.P. capacity operates with minimum noise level. The working area is illuminated by fluorescent lighting fitted to the unit. The height of the working table provides a comfortable “SIT DOWN” working position for the operator. In addition to the above features of a standard Vertical Laminar Flow Bench the “authentic Bio-Safe Cabinets have arrangement for re-circulating a part of the air thus creating highest level of clean air. The unit is also convertible to the conventional vertical laminar flow bench with downward air flow by lifting the sliding front door upwards. Air is sucked through the pre-filter and the excess air is thrown out from the top by means of a COMPUTER FAN fitted at the top of the unit and is let out through a HEPA filter of size 1’ x 1’ x 6”.
| Working size | 2’ x 2’ x 2’ | Size of HEPA Filter | 2’ x 2’ x 6” | ||
| No. of HEPA Filter | 2 | No. of Pre Filter | 2 Nos | ||
| Illumination | 2x40W | UV Tube | 2 Nos | ||
Special Features :
| Floor Model with Front Manual Door. | Exhaust system suitable for 6’ duct | ||
| Negative pressure having supply & exhaust via HEPA/ULPA Filters giving efficiency of 99.99% & 99.999%. | Static Pressure Manometer: is used for monitoring the HEPA Filter | ||
| Air Flow Speed 0.3 ± 10% m/s. | Noise < 60 dB. | ||
| Exhaust ducting (Per running feel) : to through the contaminated air to the atmosphere. Exhaust ducting PVC PIPE with suitable fittings | Virus Burn out unit : Ensures destructions of pathogens present in air being exhaust from the cabinet. This further enhances protection of environment. | ||
| Advances microprocessor control system. | Gas burner (Extra) | ||
| UV disinfection | Cock for Gas, Air or Vacuum line. | ||
| Total exhausted air tunnel via ULPA exhaust filter | Coarse grid filters. | ||
| Supplied with UV light & fluorescent light of > 800 lux | HEPA Filter at Exhaust | ||
| Sliding Sash: renders unit convertible for use as a conventional vertical laminar down flow clean air work station. | Particle Dust Count can be done at site after installation of above at an extra cost. |
