Resistance Box
Product Details:

DIAL TYPE RESISTANCE BOXES
EL 348 Single Dial Range Total Resistance Range Total Resistance a) Tenths 1 b) Units 10 c) Tens 100 d) Hundreds 1000 e) Thousands 10000
EL 349 Two Dial a) Tenths and Units 11 b) Units and tens 110 c) Tens and Hundreds 1100 d) Hundreds and thousand 11000
EL 350 Three Dials a) Tenths, Units and tens 111 b) Units, tens and hundreds 1110 c) Tens, Hundreds and 11100 thousands
EL 351 Four Dials a) Tenths, Units and tens & 1111 hundreds b) Units, tens and hundreds & 11110
EL 352 Five Dials a) Tenths, Units and tens & hundreds & thousands. 11111 For 0.01 and 10,000 Ohms dial - Extra

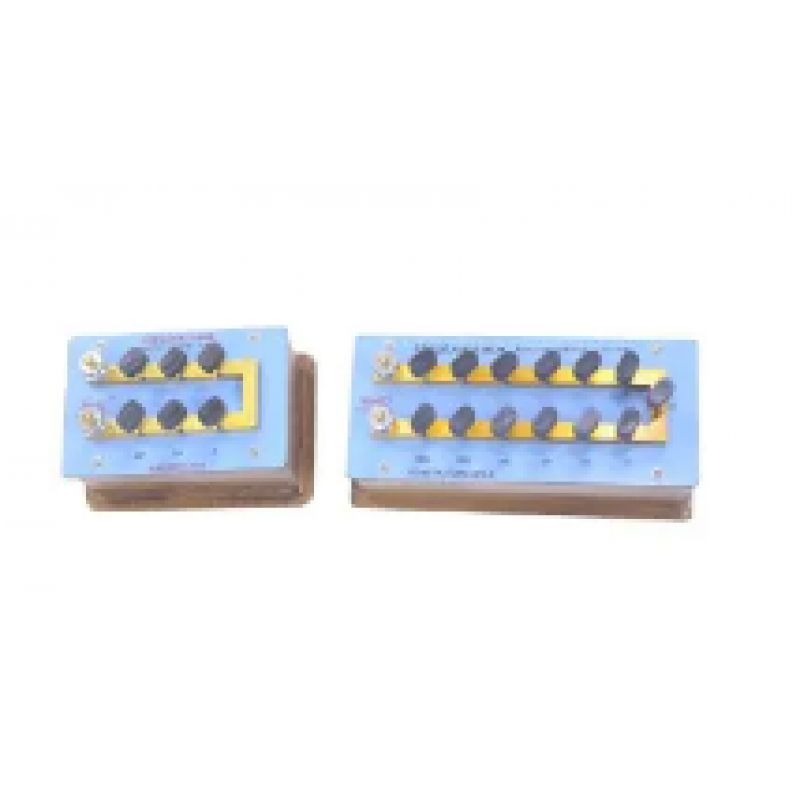

RESISTANCE BOXES PLUG TYPE
EL 353 Resistance Boxes Pye type or Gamberal type. Educational quality. Accuracy : Constantan Coils 0.2% and Maganin coils 0.1%. No. of Total Range of ohms Coils Resistance a) .1 to .5 & 1 to 5 4 1 b) .1 to 1 & 1 to 10 5 2 c) .1 to 5 & 1 to 50 8 11 d) .1 to 10 & 1 to 100 9 21 e) .1 to 50 & 1 to 500 12 111 f) .1 to 100 & 1 to 1000 13 2110
g) .1 to 500 & 1 to 5000 16 1110 h) .1 to 1000 & 1 to 10000 17 21110 EL 354 Resistance Boxes Superior quality: Most Suitable for Degree Colleges. Accuracy : Constantan Coils 1% and Manganin coils 0.05%. No. of Total Range of ohms Coils Resistance a) .01 to .1 5 2 b) .01 to .5 8 1.1 c) .01 to 1 9 2.1 d) .1 to 1 & 1 to 10 5 2 e) .1 to 5 & 1 to 50 8 11 f) .1 to 10 & 1 to 100 9 210 g) .1 to 50 & 1 to 500 12 1110 h) .1 to 100 & 1 to 1000 13 2110 i) .1 to 500 & 1 to 5000 16 11110 j) .1 to 1000 & 1 to 10000 17 21110
RESISTANCE BOXES DIAL TYPE
EL 355 Resistance Box Dial Type ACCURACY 1% made with Metal film Resistance (a) Single Dial (b) Two Dial (c) Three Dial (d) Four Dial (e) Five Dial Please mention the Value of decade while Sending the Order. Any other decade can be supplied on request.
