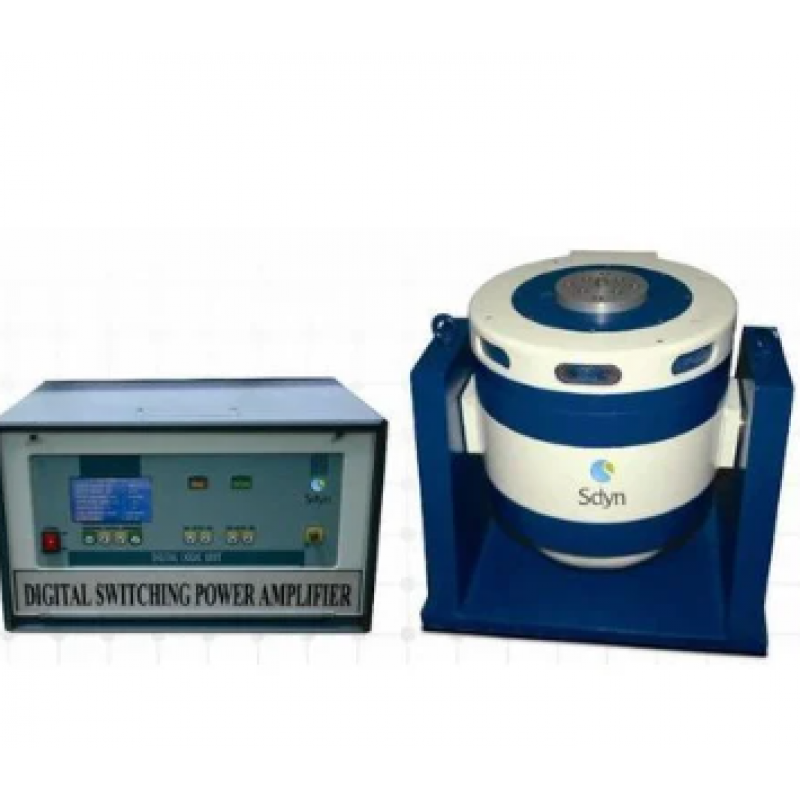

SEV 125 Electrodynamic Shaker
Product Details:
Armature Diameter | 125 mm |
Sine Force | 100 Kgf |
Random Force | 70 Kgf |
Sine Acceleration | 50 g |
Sine Peak Velocity | 1.2m/sec |
Displacement | 20 mm |
Axial Resonance | 4200 Hz |
Frequency Range | DC to 4500H |
The lower range of electrodynamic shakers are designed for engineering institutions and laboratories for conducting research experiments by injecting excitation frequencies in a large test band.
As standard configuration, the shaker is supported on a frame and contains a trunion assembly for 90 degree tilt. It is force-air-cooled by a centrifugal blower system, which sucks air through the evenly spaced air guide path that is interlocked with the amplifier console for operational safety.
The logic unit and power section is housed in a table top console for ease of use. The system can operate up to 5KHz frequency.
