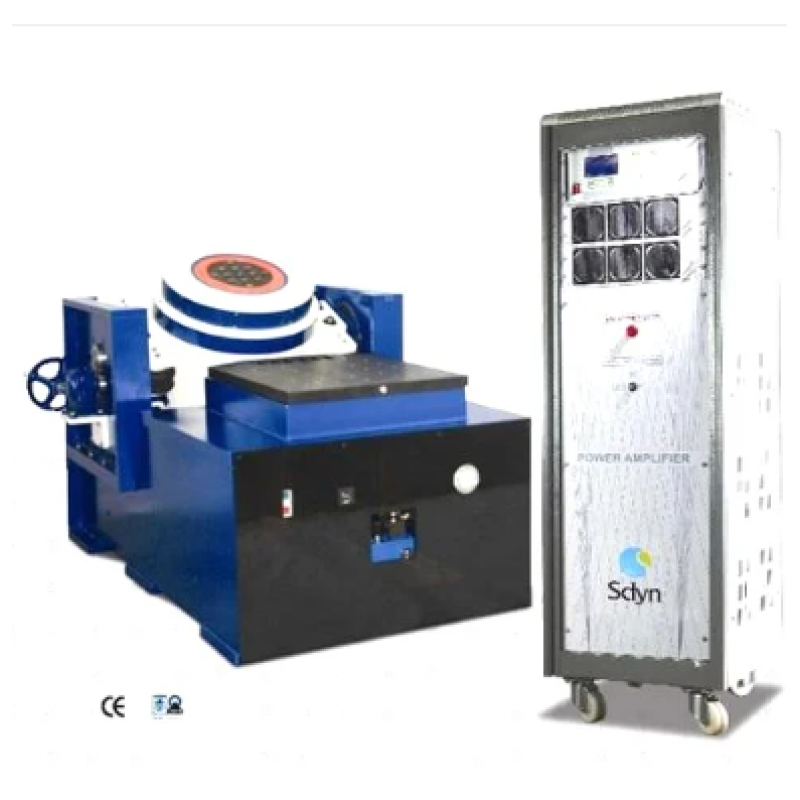

SEV 240 Electrodynamic Shaker
Product Details:
Armature Diameter | 240mm |
Velocity | 1.7m/sec |
Axial Resonance | 2800 Hz |
Moving element mass | 13 kg |
Internal load capability | 240 kg |
Suspension axial stiffness | 5 kg /mm |
Technical Specification:System Performance : |
SEV 240 Shaker, DSA Amplifier | SEV240-DSA 10K |
Armature Diameter | 240mm |
Sine force (peak) | 1000Kgf (220lbf, 10kn) |
Random force (rms) | 1000Kgf (220lbf, 10kn) |
Shock Force | 2000Kgf (4400lbf, 20kn) |
Acceleration (sine) | 75g |
Velocity (sine peak) | 1.7m/sec |
Displacement | 38mm (1.5 inch) |
Axial Resonance | 2800HZ |
Useful Frequency range | DC to 3200hz |
Safety Compliance | System complies and marks to the international safety requirement WRT CE |
Protection Interlocks | Mains input over & under Voltage, Over Current, Loss of input phase, Over Temperature amplifier & shaker, Cooling flow, Field fail, user safety interlock if specifically required by customer |
Shaker Characteristics: |
Moving element mass | 13 kg |
Internal load capability | 240 kg |
Suspension axial stiffness | 5 kg /mm |
Suspension cross axial stiffness | 300 kg/mm |
Stray magnetic field (150mm above table) | <1.5mT (15 gauss) |
Cooling air flow (blower system) | 1200 cfm |
Compressed air (utility required at site) | 6 bar/87 PSI |
Shaker body mass | 1500kg |
Dimensions (LxWxH) | 1000x660x880 (mm) |
SEV 240 Electrodynamic Shaker
