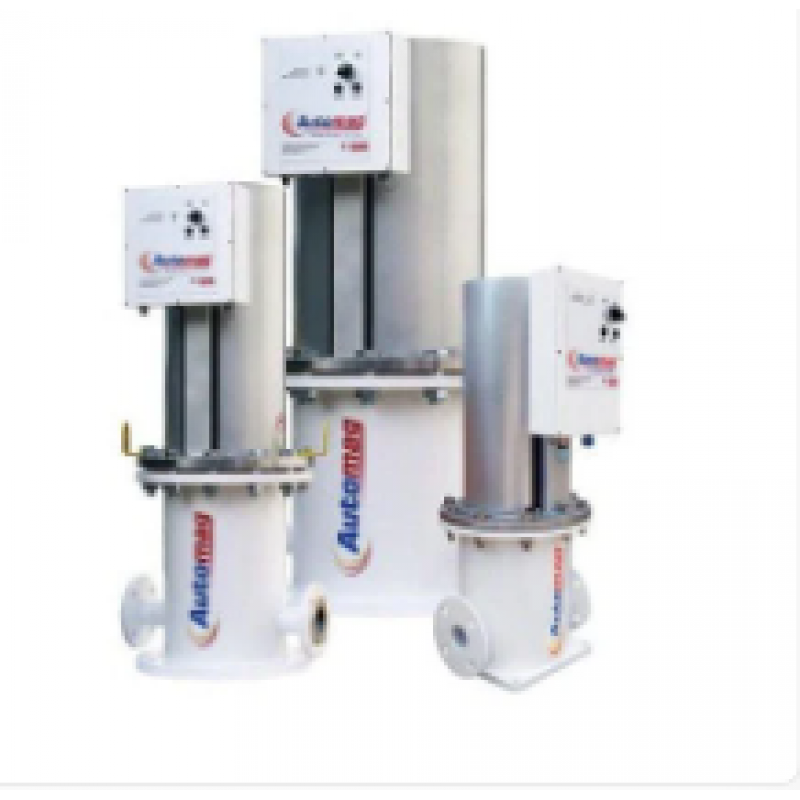

Self Purging Fully Automated Magnetic Filter

Dimension	740 x 300 mm
Diameter	200 mm (Inner Dia), 290 mm (Outer Dia)
Temperature Range	5 deg C
Body Material	Stainless Steel
Model No	AMC
Port Size	1 1/2" PN16 Flange
Max Operating Pressure	10 bar
Contamination Capacity	2.5 Kg
Max Flow Rate	2000 L/min (12 m3/hour)
Number of Core	8

The Automag magnetic filter from Eclipse Magnetics uses powerful ‘rare earth’ magnetic material to improve the quality, efficiency and performance of manufacturing and finishing processes.

The fully automatic, self purging unit effectively removes all magnetic debris, down to sub-micron size, from cutting fluids and oils. This ensures clean fluid is available at the cutting face, resulting in enhanced surface finish and accuracy.

The filter does not use consumables, unlike cartridge and bag filters, operates without user intervention and requires only a small amount of compressed air to operate the cleaning process. Running costs are extremely low.

Payback can be calculated in months rather than years.

Automag can also benefit many other manufacturing applications – from industrial part washing systems to vehicle pre-paint body washing stations and any other applications that rely on a clean supply of filtered fluid

Automag magnetic filters are used effectively in these applications:

• Grinding, honing & lapping machines
• CNC machinery
• Fine finishing operations
• Industrial part washing
• Post drill head operations
• Circular saw sharpening
• Pump protection
• Pre-filtration
• Quenching operations

In the following sectors

• Machine tools
• Manufacturing
• Automotive
• Hydraulic
• Marine
• Oil
• Transport
• Water
• Yellow & White Goods

How Automag Works

• Contaminated fluid enters the inlet port where it is dispersed into the first filtration chamber. The fluid passes around the high-intensity ‘rare earth’ magnetic cores where contamination particles are removed. The fluid is slowed and enters the second filtration chamber where it receives further filtration.
• Contamination remains attached to the stainless steel sleeves of the cores. The filtered fluid exits through the outlet port.
• The geometry of the magnetic flux circuit ensures a controlled build up of contamination so the filter can never block.
• The purging process is fully automated. The cores are raised from the sleeves and the purge valve is switched. Fluid is pumped through the filter, washing the contamination from the unit.
