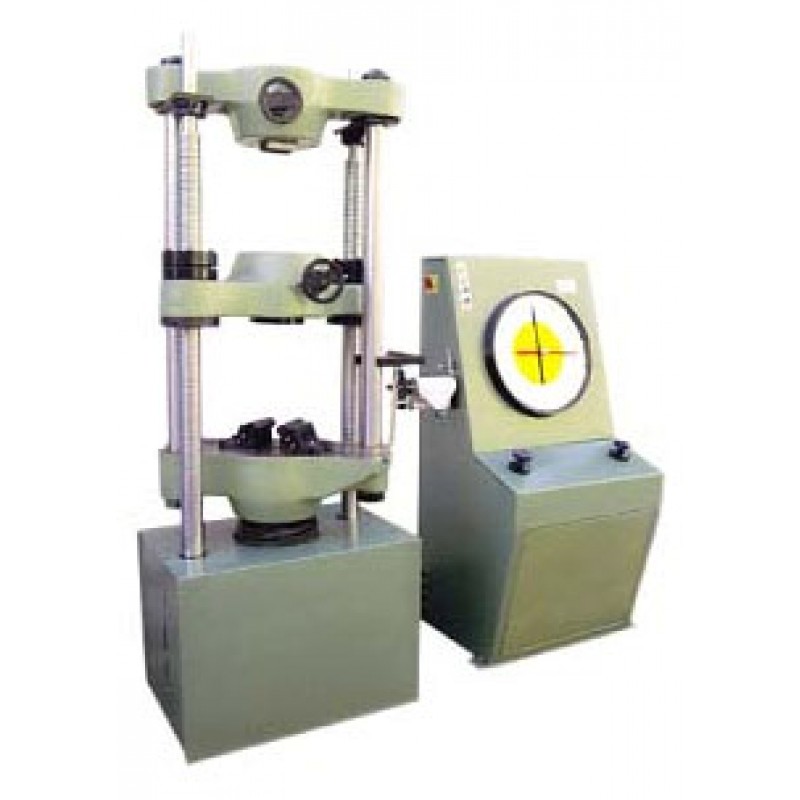

UNIVERSAL TESTING MACHINE

Product Details :

INNOVATIVE  Universal Testing machines are designed and built to conduct tests on materials under tension, compression bending, and transverse and shear loads. The Innovative  UTMs  are used for determining the Tensile, Compression, Shear Strength and elongation of variety of raw materials such as metals, rubber, leather , fabric, plastics, Belts , wires etc.

They are based on constant rate of traverse principle in which one end of the test specimen is held in a stationary grip, while the other end is made to move at a known fixed speed. The load exerted on the stationary grip indicated by a digital load indicator. The controller is microprocessor based and has the facility of over load protection, peak hold and auto calibration. The load directly indicated in kilograms or Newton or KN.

The elongation of the test specimen is measured on a linear scale (or digital indicator according to the model) fixed on the frame of the tester, which indicates the distance between the grips.The frame of the tester fabricated from mild steel to give the required rigidity and strength.

The tester is finished in metallic painting/powder coated and bright chrome/ zinc plating to give the apparatus a corrosion resistant finish. It is supplied complied with electrical, which include micro-switches. Push buttons, and contactors for safe and convenient operation.

Features

• Loading accuracy as high as ±1%.
• Training roll autographic recorder supplied as standard to enable study of the behavior of materials.
• High reading accuracy due to large size and design of dial.
• Wide range of standard and special accessories, including load stabilizer. Easy change from plain to threaded and screwed specimens.
• Motorized loading and unloading cycle.
• Large effective clearance between columns enables testing of standard specimens as well as structures.
• Simple controls for ease of operation.
• Safe operation ensured by means of safety devices.
• Fully enclosed and protected pendulum.
