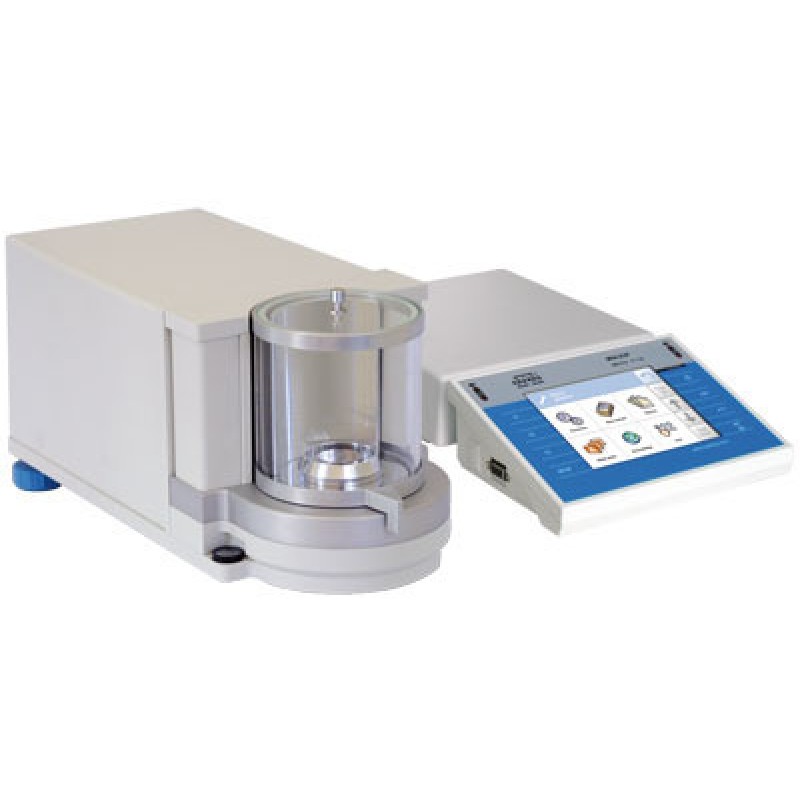

Micro Balance
Standard Features :
- Automatic internal calibration with built in weight
- Micro balance software allows for composition of GLP procedures as standard printout
- Accurate repeatability for better results
- Graphical LCD Display with back light
- Standard RS 232 C Interface
- Based on E.M.F.C. Technology
- Various weighing units' ct, mg, gm, oz, dwt, mom, GN ambient temperature.
- S.S. Weighing Pan, Level Indicator, Adjustable Fit
- Full tare range up to max. Capacity of the Balance
Technical Data :
Model | MYA-5.3Y | MYA-11.3Y | MYA-21.3Y |
Max Capacity | 5 g | 11 g | 21 g |
Readability | 1 µg | 1 µg | 1 µg |
Repeatability | ±2 µg | ±3 µg | ±5 µg |
Linearity | ±3 µg | ±5 µg | ±10 µg |
Pan size | 26ømm | ||
Stabilization Time | 5 Sec | ||
Communication | RS 232, 2 x USB, Ethernet , 4IN /4 OUT (Digital) | ||
Calibration | Automatic Internal calibration | ||
Weight Units | Multi unit | ||
Power | 230 V / 11V AC | ||
Display | 5.7" touch screen Display | ||
Working Temperature | 10°C - 40°C |
