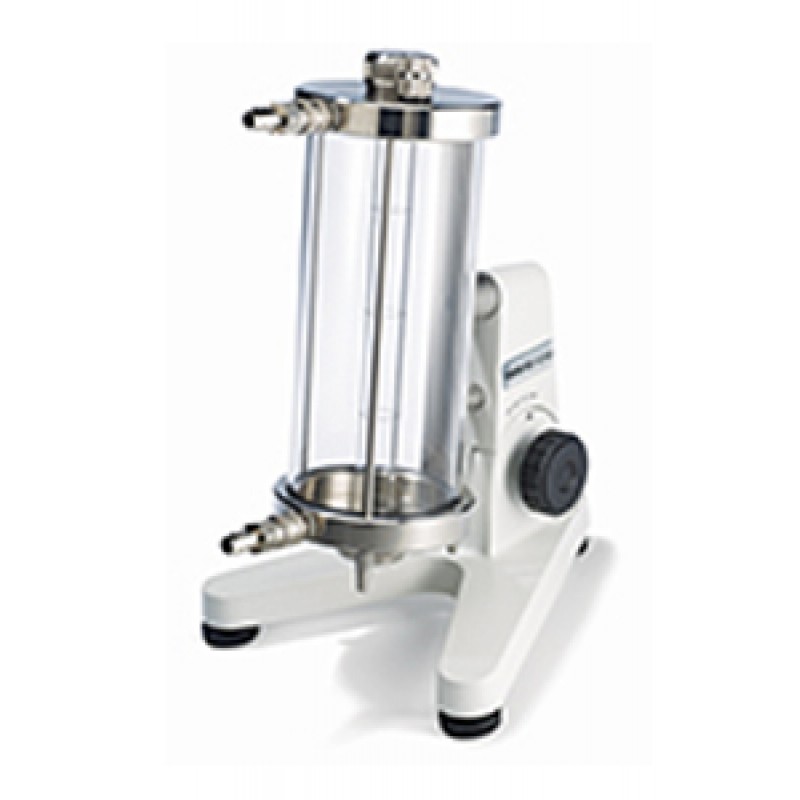

Falling Ball Viscometer
Product Details :
The Falling Ball Viscometer uses the simple, but precise, Höppler principle to measure the viscosity Newtonian fluids by measuring the time required for a ball to fall under gravity through a sample-filled tube. The Höppler principle is used to measure the viscosity of Newtonian liquid by measuring the time required for a ball to fall under gravity through a sample-filled tube that is inclined at an angle. The average time of three tests is taken; the result is converted into a viscosity value using a simple formula.KF40 can be angled at 50°, 60°, 70° and 80
FALLING BALL SPECIFICATIONS | |||||||
Viscosity Range: | 0.5 mPa·s (cP) to 70,000 mPa·s (cP) | ||||||
Accuracy: | 0.5%-2.0% depending on choice of ball | ||||||
Ball Set Material of Construction: | |||||||
Balls 1 and 2: | Boron Silicate Glass | ||||||
Balls 3 and 4: | Nickel-iron | ||||||
Balls 5 and 6: | Steel | ||||||
Ball Diameter: | 11.0mm to 15.81mm | ||||||
Fall Time of Ball in Measurement: | 30 to 300 seconds** | ||||||
Length of Measurement Zone in the Tube: | 100mm | ||||||
Operating Temperature Range: | -60°C to +150°C | ||||||
Sample Tube Volume: | 40mL | ||||||
Viscometer Dimensions: | 180 x 220 x 330mm | ||||||
FEATURES & BENEFITS
·
Pivot bearing allows
for quick and easy tube rotation - ideal for repeat tests
·
Connection to
circulating bath for temperature control of sample
·
Set of six balls to
test a wide variety of samples
·
Complete with
temperature probe
·
Accuracy 0.5% to 2.0%
depending on ball being used
