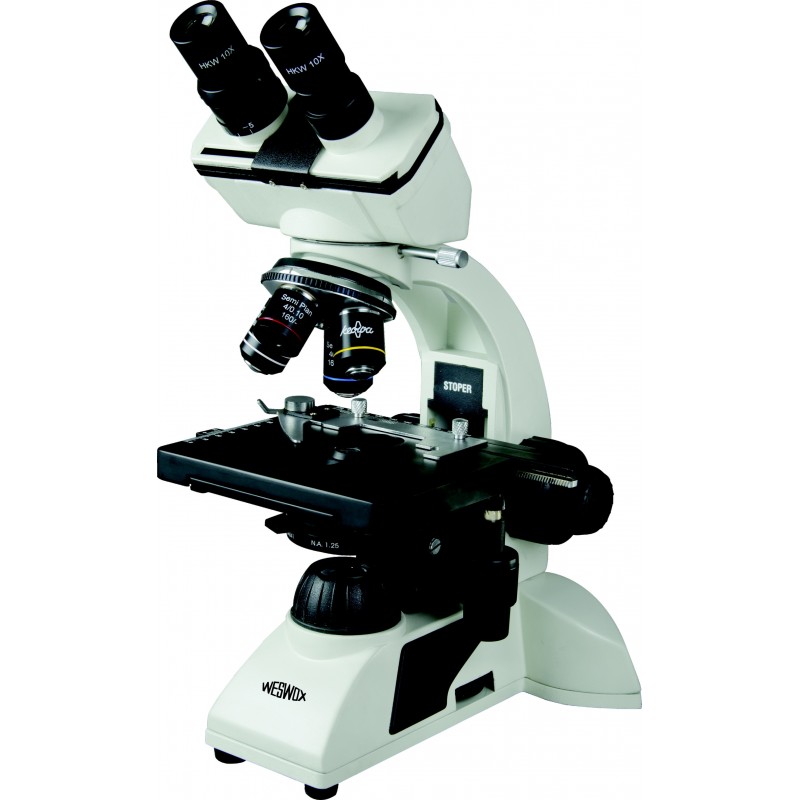

WESWOX ADVANCE RESEARCH BINOCULAR MICROSCOPE

Reflecting Innovations in Optical design, Mechanical engineering & Illumination concepts, the PRIMA delivers evolved performance features to a growing list

of happy users.

TECHNICAL SPECIFICATIONS:

ü  STAND: Stable & sturdy C shaped stand with well-contoured modular base, corrosion resistant paint and heat resistant pads.

ü  VIEWING HEAD: Standardized Binocular tube, inclined at 45° rotatable through 360° with IPD 55-75 mm and Dioptric adjustment. Anti fungus treated.

ü  EYEPIECES: Eyepiece WF 10x FN 18mm paired with eye guards.

ü  NOSEPIECE: Low friction & fully parafocal Quadruple Revolving nosepiece (Ball Bearing type).

ü  OBJECTIVES: KEOWA VA series All New High Definition DIN S-plan Achromatic, anti fungus treated objectives:

ü  4x/0.10

ü  10x/0.25

ü  40x(SL)/0.65

ü  100x(SL, Oil)/1.25

ü  STAGE: Double layer graduated mechanical rectangular stage  size 142 x 133mm cross travel 75 (X) x 50 (Y) mm on ball bearing co-axial controls spring clip specimen holder.

ü  FOCUSING MODULE: Ergonomic low position co-axial coarse and fine focusing system on ball bearing guideways.  Tension adjustment ring and Auto Focus provided.

ü  CONDENSER: Moveable rack & pinion mounted ABBE Condenser, NA 1.25 with aspheric lens.

ü  IRIS DIAPHRAGM: Special day light blue filter in holder.

ü  ILLUMINATION: Illumination, 6V 20W Halogen or 3W LED Lamp illumination with variable illumination control

ü  POWER: Power Input 220V, 50/60 Hz or 110v AC as per ISO 9001 & CE standards.

ü  PACKAGING CONTENTS

The microscope is packed inside a STYROFOAM with Dust Cover no. user instruction manual.

Same as above but with plan achromatic objectives

27000/-
