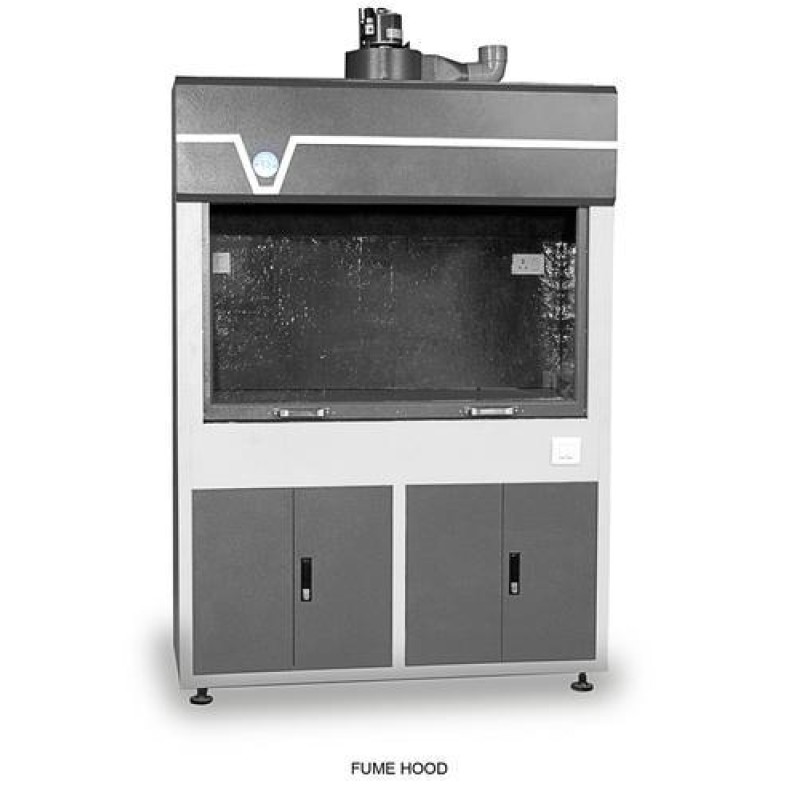

Fume Hood are recommended for exhaust from the hood working area of gases, vapour, toxic particles & odour to improve working environment of people who regularly handle toxic substances. These eqipments reduce personal exposures and odor level in the laboratory. The Fume Hoods are designed to exhaust toxic or otherwise harmful vapors etc. for protecting laboratory personnel & equipments. A motor-blower exhaust system generates negative pressure within the hood, extracting the contaminated air from the working area and expelling it outside the building atmosphere and thereby preventing the fumes spreading into the room.

Constructions:

• The main body of the fumes hood is asbestos or FRP lined.

• The work surface (worktable) is of stainless steel sheet.

• A small S.S. Sink, water tap and water outlet are provided.

• A sliding door made of acrylic, moves vertically up/down with counter balanced weight operated by steel rope.

• Hood is provided with fluorescent light for easy working in the chamber.

• A metal clad socket and gas cock is also provided in the chamber.

• The control panel is fitted with on/off toggle switches for mains, motor-blower and tube light and mains indicator.

• Powerful exhaust assembly of 150 mm dia 20 feet long PVC ducting with rain guard. The additional length of PVC ducting will be at extra cost.

• Working Area (Ft):

• L 4 x D 2 x H 2

• L 5 x D 2 1/2 x H 3

• L 6 x D 3 x H 3


Specifications:

• Temperature: -30c

• Refrigerant: R504A

• Size: Large

• Structure: Knock Down

• Use Nature: Production

• Additional Information:Item Code: EIE2503A

• Pay Mode Terms: L/C (Letter of Credit),D/P,T/T (Bank Transfer),Other

• Port of Dispatch: Ahmedabad Airport

• Production Capacity: 100 Pieces Per Year

• Delivery Time: Within 4-6 weeks after receipt of firm order

• Packaging Details: At first, the unit is thoroughly cleaned and Wrapped with Polythene Sheet.

• Then the entire instrument is covered by Thermocol or Mic-Pag wherever it is necessary.

• Foundation is also made on the wooden platform to hold the equipment in its original position.

• At last, the wooden box is sealed to pack the complete instruments.
