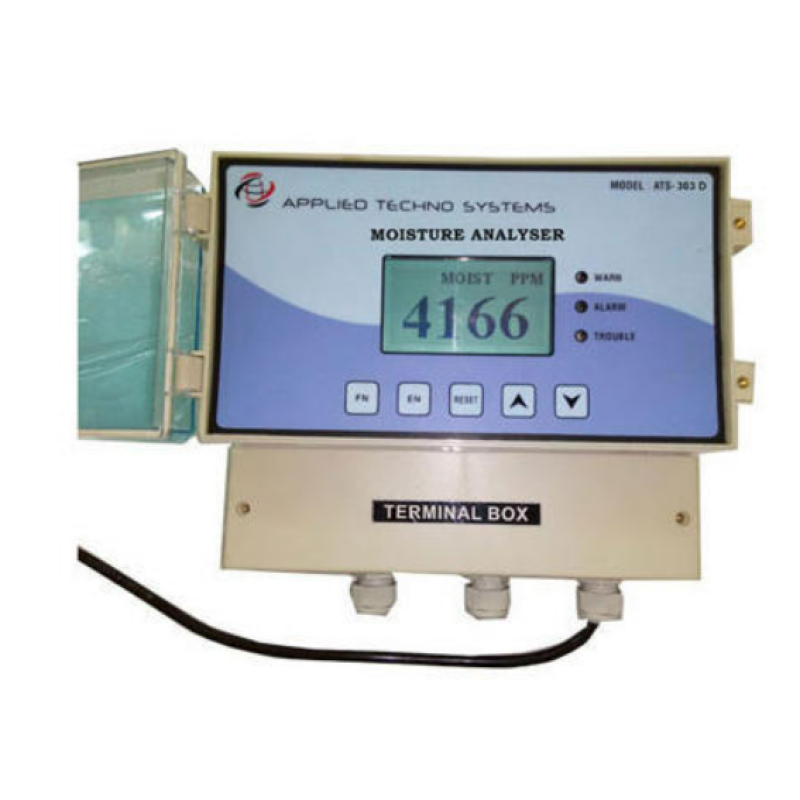

ATS-303D Process Moisture Analyzer

Product Details:

Model Name/Number	ATS-303D
Automation Grade	Automatic
Usage/Application	Industrial
Power Supply	Built in Lithium Rechargeable Battery Or 230V AC
Brand	Applied Techno Systems
Display Type	Digital
Accuracy	+/- 2%
Weight	1.5 Kg
Country of Origin	Made in India
Dimensions	200 (W) X 120 (H) X 185 mm (W x H x D)

Model ATS-303D Process Moisture Analyzer Designed to Handle Rigorous Demands of Moisture Measurement in Natural Gas Applications, Provides Fully Automatic Self-Calibration Dew Point System, Provides Cost Effective Solution for Demanding and Critical Moisture Monitoring Applications. The advantages of a linear high capacitance response are: better sensitivity, better repeatability and faster response times. Also, the measurement system is less prone to noise and drift, and signal conditioning is kept to a minimum. The dew point meter is operated through a menu driven user interface consisting of a custom LCD display with backlight, and four push buttons.This dew point system has proven to produce consistently accurate monitoring results for dew point in natural gas and other difficult hydrocarbon processing applications, where conventional analyzers have failed.
Features:

• High Confidence in Measurement

• Automatic Field-Calibration/Validation

• Long Sensor Life

• Low Maintenance and Low Installation Cost

• Inbuilt thin film capacitive sensor

• 128 X 64 Graphics LCD Display embedded software for moisture calculation

• Optional Sampling systems

• Data Logger with RS 232- USB Computer Interface.


Specification:
