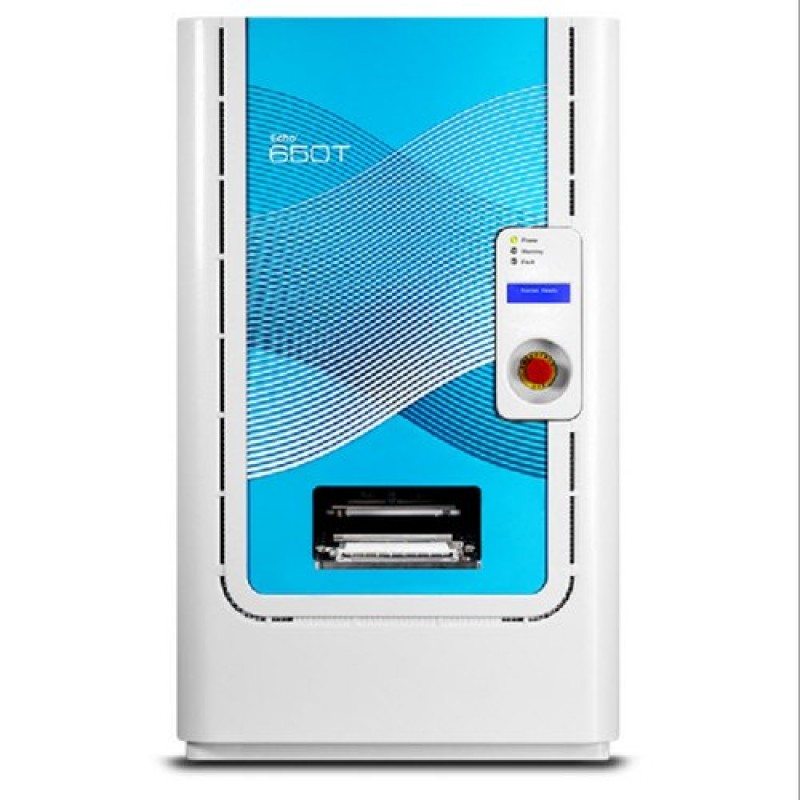

Beckman Coulter Echo 650 Series Acoustic Liquid Handler
Product Details:
Brand | Beckman Coulter |
Series | Echo 650 |
Drop Volume | 2.5 nL |
Volume Transfer Range | 2.5 nL - 5 micro L (dependent on fluid type, assay, and source plate used) |
Transfer Accuracy | <10% deviation from target volume |
Transfer Precision | <8% CV (except protein crystallography fluid class) |
Source Labware Compatibility | Echo Qualified 384- and 1536-well Microplates |
Destination Labware Compatibility | Echo Qualified most ANSI-compliant/SBS-standard microplate in 96-, 384-, 1536- and 3456-well formats |
Well Height | 8 to 16 mm |
Barcode Reader Options | Short-side and/or long-side |
Dimensions | 53.9 cm width x 68.3 cm depth x 92.5 cm height (21.2 x 26.9 x 36.4 inches) |
Weight | 130 kg (286 lbs) |
Working Envelope | Additional 25.4 cm (10 inches) on top, 2.5 cm (1 inch) on sides, 7.6 cm (3 inches) at front, 30.5 cm |
Electrical Requirement | AC 120V, 50/60 Hz, 10A |
Operating Temperature | 21 +/- 5 deg C (70 +/- 9 deg F) |
Other Details:
- Enables assay miniaturization in a broad range of applications
- Transfer from 384-well and 1536-well microplates
- Accurate, precise, contact-free acoustic transfer in volumes as low as 2.5 nL
- Transfer from Echo Qualified sample tubes and microplates
Another Step Forward for Acoustic Liquid Handling:
- Echo 650 Series Acoustic Liquid Handler are ideal for medium-throughput applications.
- They enables the transfer of as little as 2.5 nL from 384-well and 1536-well microplates.
- As your research needs change, upgrade packages are available that enable the addition of Echo Qualified sample tube capabilities.
Key Benefits:
- Measure DMSO hydration levels to gain insights into sample integrity and improve transfer quality
- Elimination of compound loss, cross-contamination, carryover, or leachates through non-contact transfer
- Accurate and precise transfer of nanoliter-scale quantities, enabling assay miniaturization, further reducing costs
- Better results through direct dilution of compounds, an improvement over serial dilution methods
- Flexibility to transfer any volume of liquid from any source well to any destination well
Acoustic Sample Tube Management: The FluidX AcoustiX Sample Tube (FAST) was developed in collaboration with and is sold by Brooks Life Sciences for ultra-high-density sample storage. The acoustic tube offers the following benefits:
- Echo Qualified design - compatible with Echo 650T and 655T Liquid Handlers
- Preserves sample integrity from storage to screen
- Miniaturize upstream liquid handling steps to conserve sample
- Rapidly pick sets of samples for targeted screening
- Workflow Automation: To meet the broad spectrum of sample throughput needs, Echo 650 Series Liquid Handlers seamlessly integrate with the highly configurable Access Dual Robot System accommodating a wide variety of devices and enabling a fully automated workflow.
- Configured to achieve optimal throughput for sample management workflows
- Compact and ergonomic design with docking modules, turntables, retractable shelves, and drawers
