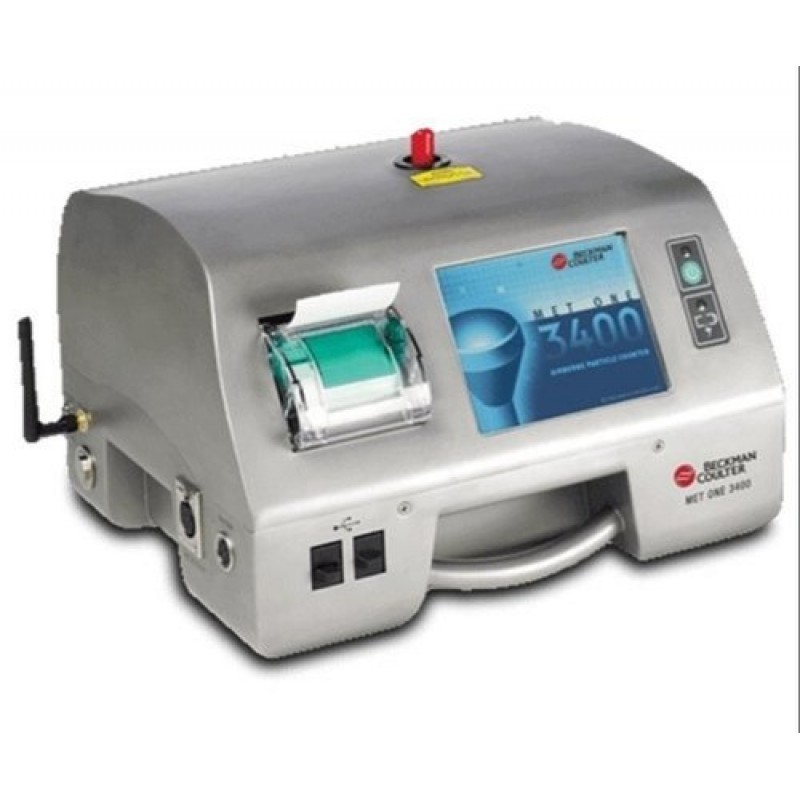

Beckman Coulter Met One 3400 Series Portable Air Particle Counter
Product Details:
Brand | Beckman Coulter |
Height | 20.3 cm (8 in) |
Color | Silver |
Industry Standards | CE, ISO 21501-4 , 21 CFR Part 11, ISO 14644-1:2015, FCC |
Series | Met One 3400 |
Part Number | 2089494-01 |
Platform | Documentation & Accessories |
Operating Temperature Range | 0 to 40 deg C |
Storage Temperature Range | -40 to 50 deg C |
Humidity | 10%-90% relative humidity (non-condensing) |
Power Requirements | 24 VDC; 3.2A with 100-240 VAC; 50/60 Hz adapter (included in ship kit) |
Operating System | Windows CE |
Software | Upgrade for 3400 Series to allow export in secure PDF |
Display | Color 1/4 VGA TFT touch screen |
Performance | ISO 21501-4 unit-to-unit accuracy & reproducibility |
Sample Volume | 10 micro-m |
Interfaces & Protocols | RS-485, RS232, USB Client (v1.1), USB Host (v1.1), Modbus TCP, Modbus RTU, Serial FX, 802.3 Ethernet |
Data Storage | 5000 samples |
Reporting | EU GMP, ISO 146441-1.2015, FS209E, BS5295, ISO 14644-1:1999 |
Battery | Lithium ion smart battery (rechargeable, ejectable & hot-swappable) |
Battery Operating Time | 6 hours typical usage |
Battery Recharge Time | 6.75 hours (minimum) - 10 hours (maximum) |
Pump Type | Air vacuum, rated for continuous use |
Pump Accuracy | +/- 5% Flow Rate |
Pump Repeatability | +/- 5% Flow Rate |
Zero Count | ISO 21501-4 & JIS B 9921 (1 count or less in 5 min; 95% UCL) |
Label Locations | ID: 0 to 999; Name: Alphanumeric (appears on printout) |
Alarm Count | User Defined, Raw counts: N/CF, N/CM, N/L in cumulative or differential mode |
Environmental Conditions | Indoor Environment |
Resolution | 320 x 240 |
Operating Mode | Semi-automated, manual, controlled by operator |
Autoclavable | No |
Nonpyrogenic | Yes |
Weight | 7.6 kg (without battery) |
Width | 31.8 cm (12.5 in) |
Depth | 25.4 cm (10 in) |
The Met One 3400 Series is the easiest and most reliable portable air particle counting solution for a wide variety of cleanroom applications - from aseptic production and process troubleshooting to continuous monitoring, classification and validation. Complete your cleanroom work quickly, confidently, and securely in compliance with ISO 14644, 21 CFR Part 11, and EU GMP Annex 1 requirements.
Other Details:
- Industry’s first embedded secure data transfer for 21 CFR Part 11 compliance
- Sample plan wizard for 14644 & Annex 1 compliance
- Supports ISO 21501-4 compliance for unit-to-unit accuracy & reproducibility
- One-touch sampling & location ID
- Embedded location & sample recipe management
- Dual hot-swappable batteries for continuous operation
- Software & test wizards for easy error-free configuration
- Open communications architecture for seamless facility integration & data management
- Using Met One 3400 Simply Paperless, air particle counting data is saved as a secure PDF file. Data can be automatically exported via USB memory stick or uploaded via FTP over Ethernet to a server on your network. The MET ONE Simply Paperless PDF ensures your data is safe, secure and 21 CFR part 11 compliant.
