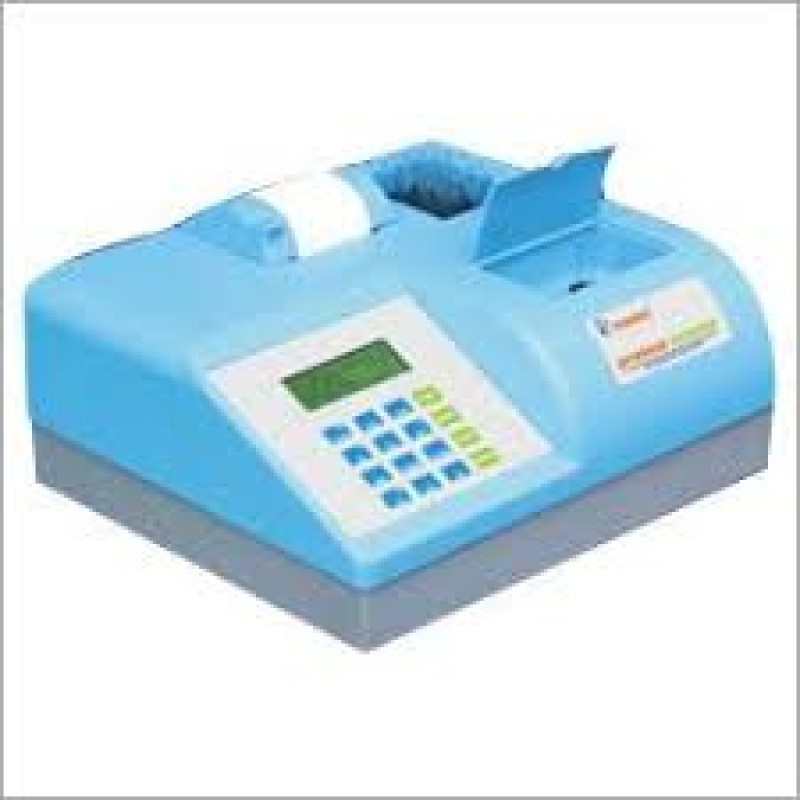

Biochemistry Analyzer

Technical Specifications

Machine Interface

• Dynamic keypad

Linear Measurement Range

• 0.000 to 3.000 Absorbance Units (A)

Photometric Accuracy

• 2% or 0.007 whichever is higher, from 0 to 1.5 A,
• 3% from 1.5 A to 3.0 A

Filters

• High Quality Narrow band Interference
• 340, 405, 510, 546, 578 and 630 mm & Two Optianal

Flow cell

• 18 l & up to 1000 l Sipping volume
• Temp. of Cuvette / Flow cell Block
• 25 C, 30 C and 37 C by Peltier effect

Light Source

• Tungsten Halogen

Display

• Graphics LCD

Printer

• Built in Thermal Printer, 20 Column

Storage Capacity

• 250 User Defined Test Programs & 2500 Patient results

Analysis Mode

• Absorbance, End Point, Fixed Time, Kinetic, Defferential, Ratio, Coagulation

Voltage

• 115 - 230 Volts ± 10%, 50 - 60 Hz
• Power - 100 VA

Features

• 52 Direct Access Test Keys
• Specially designed long life Perisaltic Pump
• Unique circuitry for long lamp life
• Triple cuvette system
• Monochromatic, Bichromatic measurement.
• Patient report with PID & Name
• User friendly software USB Interface
