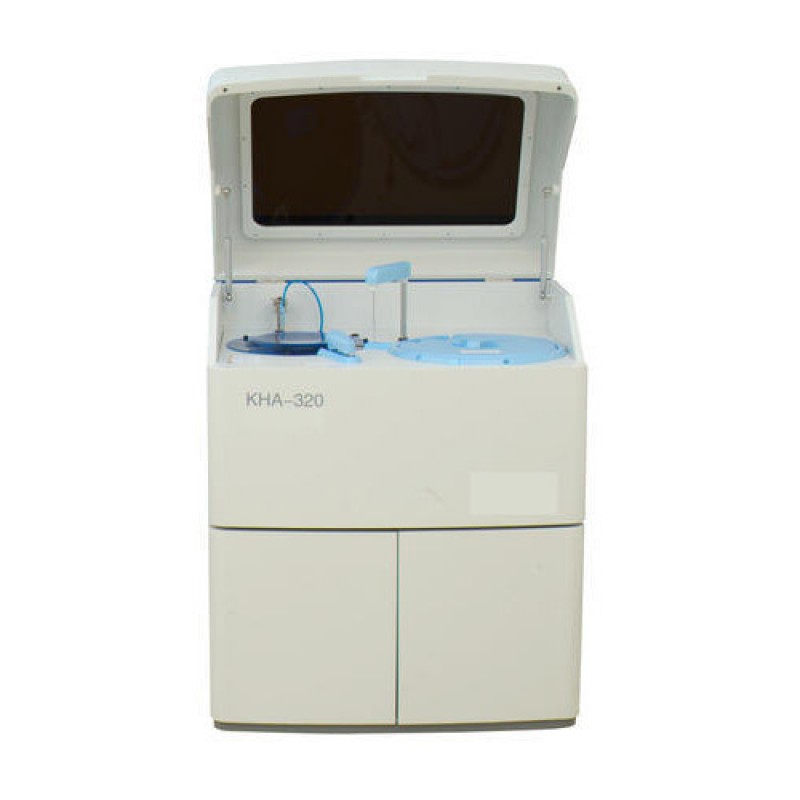

KHA-320 Full Automatic Biochemistry Analyzer
Product Details :
| Storage | 180 Tests /Hour |
| Automation | Fully Automatic |
| Usage | Pathology Lab |
Being a well-established organization, we are engaged in offering a distinguished range of KHA-320 Full Automatic Biochemistry Analyzer.
Performance:
Optical System:
Sample System:
Mixing System: Separate mixer, mix the sample and reagent completely
Specifications:
Reagent System:
Temperature Control System:
Performance:
- Type: Discrete Automatic
- Principle: Absorption Spectrophotometry, Turbidity
- Test Method: End-point, Fixed-time, kinetic
- Test Sequence: Run tests in strict accordance with sample sequence
- Insert emergency at any time
- Online Sample: 60 samples/ batch, unlimited batch input
- Reaction Time: Max 15minutes
- Reaction Volume: Mini 150μl
- Cuvette: 81 cuvettes
Optical System:
- Light Source: Halogen-tungsten lamp, 12V/20W
- More than: 2000 hrs service time
- Spectrometric Method: After spectrometric method
- Wavelength: 8 wavelengths, selectable among 340-800nm
- Detector: Photodiode array
- Absorption Range: 0-4.0Abs
- Optical System: Integrated full closed optical system
Sample System:
- Sample Tray: 60 positions
- Sample Volume: 2-30μl, 0.1μl by step
- Sample Probe: Polishing for both interior and exterior, Liquid level detection, anti-collision protection and inventory checking; probe with special cleaning solution to prevent contamination
Mixing System: Separate mixer, mix the sample and reagent completely
Specifications:
- Water Consumption: less than 4L/hour
- Power Supply: AC 220 ±22V 50HZ ±1HZ
- Power: Max 200VA
- Ambient Temperature: 15°C-30°C
Reagent System:
- Reagent Volume: 20-300μl, 1μl by step
- Reaction Tray: 60 positions, open system
- Reagent Probe: polishing for both interior and exterior, Liquid level detection, anti-collision protection and inventory checking, have automatic stop and alarm prompt for an obstacle
- Reagent Bottle: Bottles with 15ml and 30ml are available, dead volume ﹤0.5ml
Temperature Control System:
- Heating Mode: Solid constant temperature closed direct heating
- Heating Time: less than 3 minutes
- Reaction Temperature: 37±0.2°C
- Temperature Fluctuation: ± 0.1°C
Full Automatic Biochemistry Analyzer
- Views: 106
- Product Code: KHA-320
- Availability: In Stock
- ₹0
