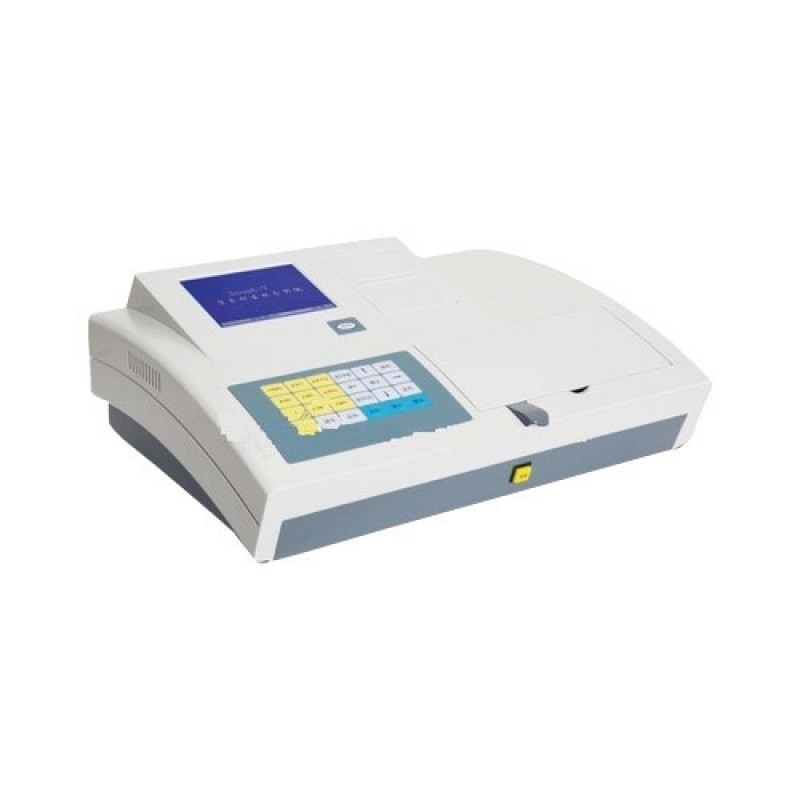

Scout V Semi Auto Biochemistry Analyzer
Product Details :
Power Supply | 220 Volt |
Usage | Pathology Lab |
Poeration Mode | Semi Automatic |
We are devoted towards offering the qualitative range of Scout V Semi Auto Biochemistry Analyzer, as per client’s precise need and requirements.
Performance:
- Back spectro photometry, 8 hard membrane filters, separate signal process circuit for each wavelength, filters select completed electronically, no mechanical movement
- Hermetic solid-state optical system, low contamination of dust and dampness, long lifetime of hard membrane filters
- Titanium alloy flow cell with small capacity and minimize cross-contamination
- 1000 patients test data and 200 test programs can be saved
- Clock CMOS chip inserted, no noise, high speed, easy maintenance
- 265x65 dot-matrix back light LCD, display character curve simultaneously
- Reasonable software, programmable biochemical test menu, Self-test program
Specifications:
- Analysis method: Kinetics, end point, two points, etc.
- Light source: halogen lamp 20w/12V, life time up to 2000hr
- Optical system: 340-800nm
- 8 standard filter: 340, 380, 405, 492, 510, 546, 578, 630nm wavelength, accuracy:±2nm
- Abs range: -2.500—2.5Abs, resolution: 0.001Abs
- Flow cell: Titanium quartz alloy, 33uL; optical path: 10mm
- Temperature: PELTIER elements, 25,30,37℃±0.1℃
- Precision: Error<1%, drift<5mAbs/hr
- Printer: Thermal printer, 58mm width paper
- Keyboard: 24 keys touch keyboard
- Interface: RS232 serial
- Dimensions: 460(L)x380(W)x200(H)mm
- Weight: 9Kg(net), 10Kg(gross)
Working Conditions:
- Temperature: 0℃-40℃
- Humidity: 5-80%
Features:
- Stable performance veterinary auto biochemical blood analyzers
- Back spectrophotometry
- 8 standard filters
- Large LCD, built-in thermal printer
- Sold in the market for over 16 years, stable performance
