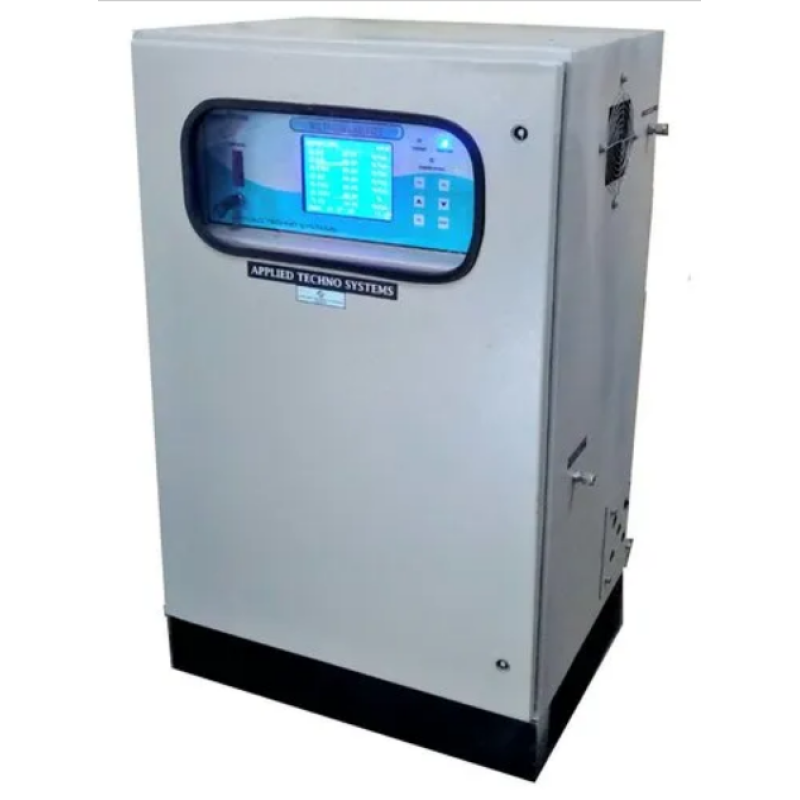

Continuous Emissions Analyzer

Product Details:

Model	ATS208A
Brand	Applied Techno Systems
Product Type	Stack Emission Monitor
Application	Industrial Use
Automation Grade	Automatic
Display Type	Graphics LCD
Response Time	Less than 30 Sec
Power	230 V AC 50Hz
Power Supply	230 V AC 50Hz

Features:

• Microcontroller based embedded intelligent instruments

• Continuous Monitoring of CO2 ,CH4, CO, O2, SO2, NOX (NO NO2), H2, H2S, N2

• Duel wavelength Infra red sensor for Long terms accuracy and stability

• Long Life Electrochemical sensor

• Six Gas Analysis in Single Analyser

• Multi Parameter Single 320 X 240 Graphics LCD Display

• Self diagnostic Self integrity check

• RS 232/RS 485 and USB Computer Interface

• Excellent low level capability for NOX and SO2 Measurement

• For most of the application sample gas is cooled and dried inside the sampling conditioning systems to avoid the Heated Sample Line.

• Analog 4-20mA output for each gas

• Software solutions for Gas Analysis

• Web Based Real time data transfer with GSM/GPRS Technology

Specifications:

• Principle: Electrochemical, TCD (Thermal Conductivity) , NDIR (Non Dispersive Infrared ), Zirconium and Paramagnetic

• Range: %V/V, % LEL, PPM, Mg/M3

• Resolution: 0.1 Unit or 1 Unit (Application based)

• Sampling Method: Auto Suction

• Display: 320 X 264 Graphic LCD

• Alarm; Relay Contact NO NC

• Anolog Out Put: 4-20mA

• Digital Out Put : RS 232, RS 485 and Modbus Comminication Protocol

• Power Source:230VAC

• Accuracy: /2%

• Response Time:

• Sensor Life: 2-3 Years for Electrochemical 5 Year for NDIR

Environmental:

• Temperature:-15degree Celsius

• Humidity :< 85%RH

• Atmosphere Pressure: 86- 106Kpa
