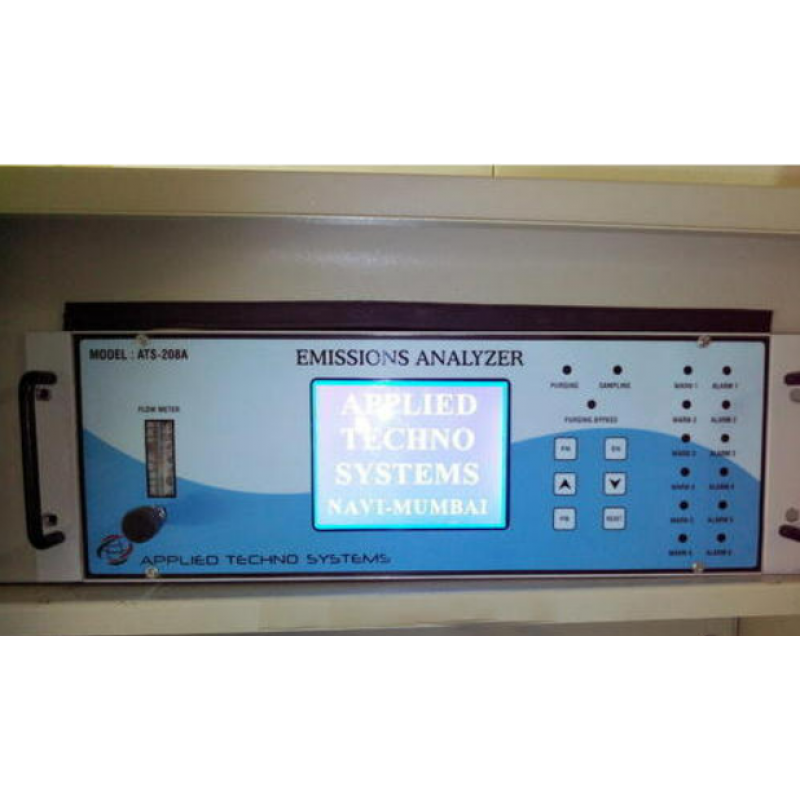

Countinous SO2 Gas Analyzer

Product Details:

Brand	Applied Techno Systems
Usage/Application	Industrial Use,Laboratory Use, Etc
Power Supply	230 V AC or Lithium Rechargeable Battery
Analysis Time	30 Sec
Display Type	Graphics LCD
Response Time	<5 Second
Weight	2.5 Kg
Temperature	-40 Deg C to 55 Deg c
Humidity	< 85%RH

Specification:

• Principle Electrochemical, TCD (Thermal Conductivity) , NDIR (Non Dispersive Infrared ), Zirconium and Paramagnetic

• Range: PPM, Mg/M3

• Resolution 0.1 Unit or 1 Unit (Application based)

• Sampling Method Auto Suction

• Gas Sampling Probe Dia 8mm SS 316

• Display 320 X 264 Graphic LCD

• Alarm Relay Contact NO NC

• Analog Output 4-20mA

• Digital Out Put RS 232, RS 485 and Modbus Communication Protocol

• Power Source 230VAC

• Accuracy /2%

• Response Time

• Data Storage 5000 or 10000

• Computer Interface RS 232, USB, RS485

• Sensor Life 2-3 Years

• Environmental

• Temperature 15degree Celsius

• Humidity < 85%RH

• Atmosphere Pressure 86- 106Kpa

• Dimension in mm 430 (W) X 150(H) X 250(D)

• Weight 2.5 KG

• Warranty One Year
