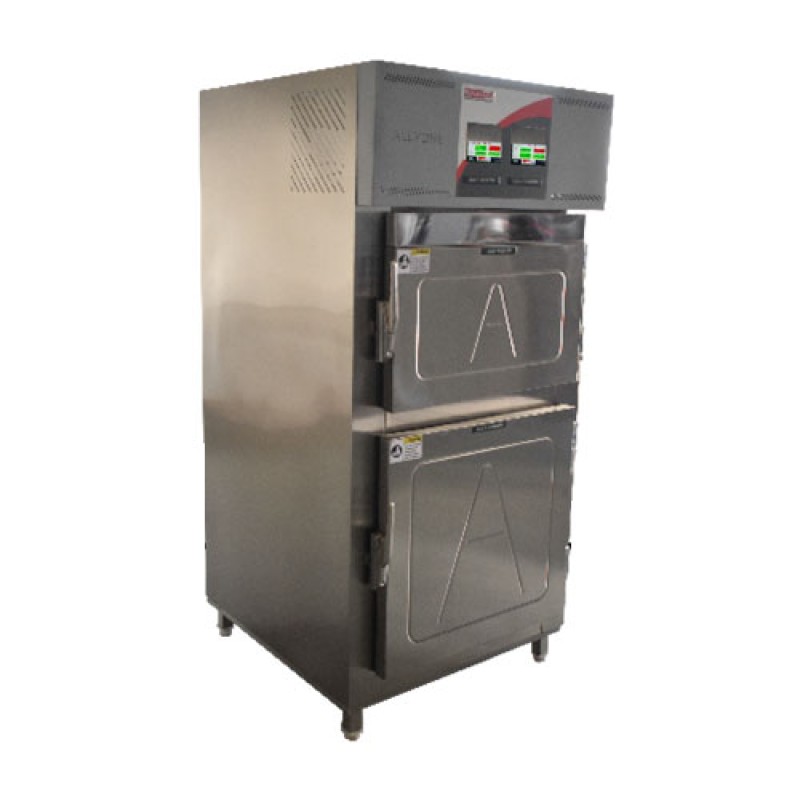

DUAL-CHAMBER
Technical Specifications :
UPPER COMPARTMENT- DEEP FREEZER
Temperature Range : -10°C to -30°C | Accuracy : ≤ +/- 3.0°C | Uniformity :≤ +/- 5.0°C* |
LOWER COMPARTMENT- COLD CHAMBER
Temperature Range : 2°C to 8°C | Accuracy : ≤ +/- 1.0°C | Uniformity : ≤ +/- 2.0°C* |
Models | Internal size in mm | External size in mm | Tray | Tray size in mm Load | Connected |
---|---|---|---|---|---|
AO/DC 100 LTR+200 LTR | 620Wx600Dx350H | 825Wx1085Dx1760H | 1 | 540Wx600Dx30H | 0.75 KW |
620Wx600Dx600H | 3 | 540Wx600Dx30H | 0.75 KW |
* Measured with high accuracy data logger at sample storage area with standard Set Point
*Dual Chamber also available as per customized or Made to Order dimensions and requirementslike: CC+Incubator, Incubator+Incubator, Stability+ Stability
Standard Chamber Features & Provisions:
Construction: Dynamically Designed PUF filled Double walled, Inner Tank & outer body with SS 304 with PUF Density of 40Kg/m3 with thickness 60mm OR 100 mm depending on the chamber combination.
Sample Storage:Trays: Perforated types (CNC punched). Strengthened with support rails to prevent deformations, Height adjustable to every ½”
Door: PUF Insulated External door mounted with imported hinges & locks, Inner glass doors with latches. Door frame is secured with silicone rubber gasket on entire perimeter to ensure air tight, leak tight chamber.
Door Operation: Biometric &/or Password protected-from software & HMI
Control System:
- Ergonomically designed Control Panel.
- Ferrule printed wiring.
- Advanced PLC Program with built in processor-based Auto Tuning.
- 2 X 4.3” HMI Color LED Display. (Individual HMI for each chamber)
- Built in Redundancy & Safety.
- Advanced High Accuracy “Transmitter Sensors” with output of 4-20 mA.
Temperature Control:
- Efficient, Reliable, Time tested & Trustworthy Refrigeration Design.
- Built in redundancy with PLC based Auto Change Over during power outage &/or component failure viz: Compressor, Humidification system
- PLC Controlled “U” Shaped SS Air Heater Banks.
Humidity Control: S S Reservoirs- steam kettles forms Humidification system(for Stability/Humidity Chamber)
Safety: Dedicated Thermostats for all key points: Chamber High Temperature, Steam Kettle Element (for Stability/Humidity Chamber), Utility High Temperature.
PLC Safety Cut Off for Temperature & Humidity: High, Higher & Low, Lower safety cut off.
Dual Chamber :
- Allyone with our rich experience & prowess in designing robust customized products as per the specific demands of clients & users have designed a “Dual Chamber” which saves space & cost and offers tremendous flexibility & convenience to the user.
- A Dual Chamber offers you flexibility when you are tied up with multiple restrictions of space & choices.
- Allyone offers customizes solution to you and you can choose between various combinations, viz:
- Upper Compartment: Deep Freezer, Lower Compartment: Cold Chamber or
- Cold Chamber + Heating/Cooling Incubator or
- Heating/Cooling Incubator + Heating/Cooling Incubator or
- Stability/Humidity Chamber + Stability/Humidity Chamber
- So on & so fourth
