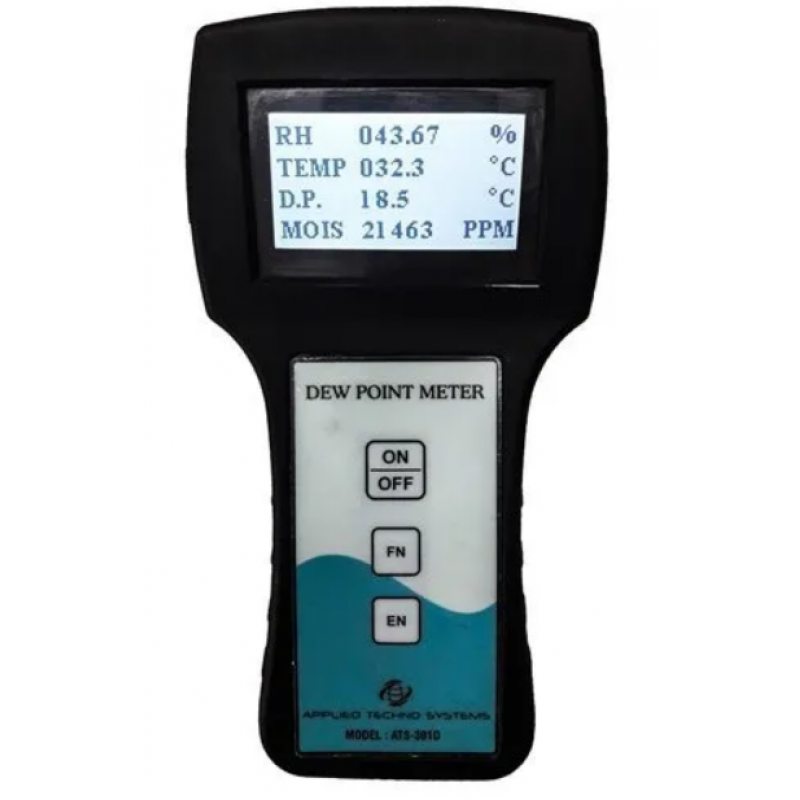

Dew Point Analyser

Product Details:

Usage/Application	Industrial
Brand	Applied Techno Systems
Accuracy	+/- 2%
Material	Plastic
Color	Black
Operating Humidity Range	< 85%RH
Size/Dimension	130 X 250 X 90 mm (W x H x D)
Display Type	Digital
Weight	0.5 Kg.
Country of Origin	Made in India

Counted as one of the prominent organizations, we are engaged in providing a wide range of superior quality Dew Point Analyser. This analyser is manufactured using exceptional quality raw-material and advanced technology by our skilled professionals. It is designed to measures dew point, Moisture and temperature faster and accurately over a wide measurements range. In order to ensure quality, this analyser is stringently tested on different parameters by our experts. Apart from this, remarkable quality and sturdy structure increase the demand of our offered range in the market. Dew points indicate the amount moisture in the air. The higher the dew points, the higher the moisture content of the air at a given temperature. Dew point temperature is defined as the temperature to which the air would have to cool (at constant pressure and constant water vapor content) in order to reach saturation. A state of saturation exists when the air is holding the maximum amount of water vapor possible at the existing temperature and pressure. When the dew point temperature and air temperature are equal, the air is said to be saturated. Dew point temperature is Never Greater than the air temperature. Therefore, if the air cools, moisture must be removed from the air and this is accomplished through condensation. This process results in the formation of tiny water droplets that can lead to the development of fog, frost, clouds, or even precipitation. Relative Humidity can be inferred from dew point values. When air temperature and dew point temperatures are very close, the air has a high relative humidity. The opposite is true when there is a large difference between air and dew point temperatures, which indicates air with lower relaitve humidity. Locations with high relative humidities indicate that the air is nearly saturated with moisture; clouds and precipitation are therefore quite possible. Weather conditions at locations with high dew point temperatures (65 or greater) are likely to be uncomfortably humid.

Features:

• Rugged construction

• Unmatched performance

• Trouble-free operation

Other Details:

• Robust Reliably Construction for Industrial Applications

• Micro controller based embedded intelligent instrument

• Multi Parameter Single 128 X 64 LCD Display

• Embedded software for moisture calculation in PPM

• Samples Pressure Upto 12 Kg/C2M

• Inbuilt Thin film Capacitive sensor

• Optional Auto Manual Data Logging systems

• RS 232/USB Computer Interface


Specification:

• Principle Thin Film Capacitive

• Range Degree C, PPM % RH

• Resolution0.1 Unit or 1 Unit (Application based)

• Sampling Method Direct Plug In

• Display128 X 64 Graphics LCD

• Power Source Built in Lithium Rechargeable battery

• Accuracy/2%

• Response Time

• Data Storage5000 or 10000

• Computer Interface RS 232, USB Sensor

• Operating Time 6 - 8 hours

• Dimension in mm130 (W) X 250 (H) X 90(D)

• Weight0.5 KG

• Warranty One Year



Application:

• Dryer Compressed Air

• Laboratory Analysis

• Light bulb manufacturing

• Industrial gas manufacturing

• Heat treatment/Food Packaging

• Petrochemical / Petroleum industry
