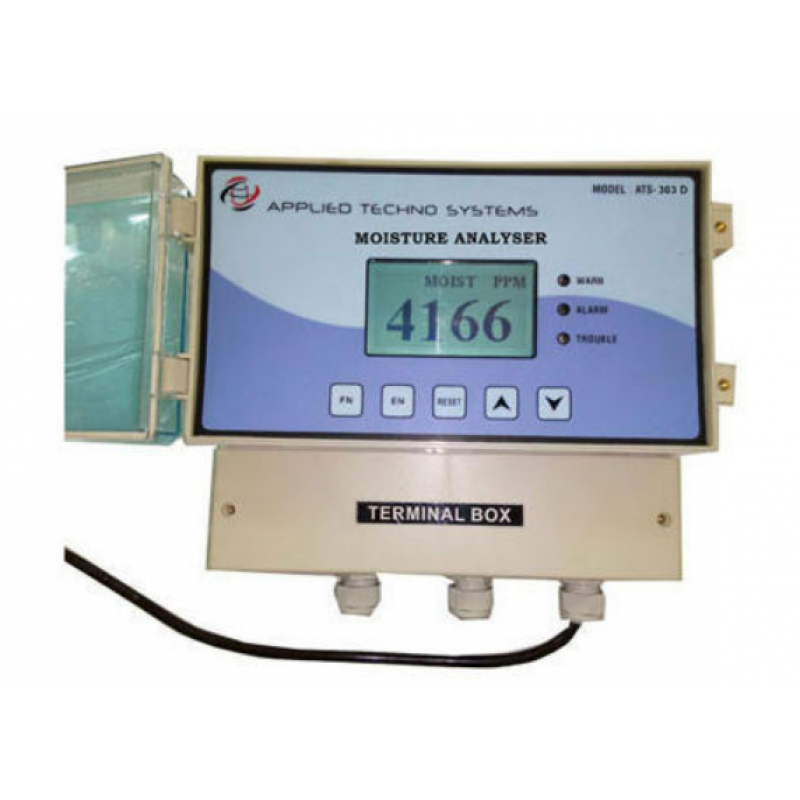

Dew Point Moisture Analyzer

Product Details:

Brand	Applied Techno Systems
Automatic Grade	Automatic
Usage/Application	Industrial
Power Supply	Built in Lithium Rechargeable Battery Or 230V AC
Display Type	Digital
Maximum capacity (Gram)	12 kg/cm2
Temperature range (Degree Celsius)	-60+30 Deg C
Accuracy	+/- 2%
Weight	0.5 KG
Country of Origin	Made in India
Dimensions	130 X 250 X 90 mm (W x H x D)
Operating Time	6 - 8 hours

Dew Point Moisture Analyzer Designed to Handle Rigorous Demands of Moisture Measurement in Natural Gas Applications, Provides Fully Automatic Self-Calibration Dew Point System, Provides Cost Effective Solution for Demanding and Critical Moisture Monitoring Applications.The advantages of a linear high capacitance response are: better sensitivity, better repeatability and faster response times. Also, the measurement system is less prone to noise and drift, and signal conditioning is kept to a minimum.The dew point meter is operated through a menu driven user interface consisting of a custom LCD display with backlight, and four push buttons.This dew point system has proven to produce consistently accurate monitoring results for dew point in natural gas and other difficult hydrocarbon processing applications, where conventional analyzers have failed.
Specification :

• Principle Thin Film Capacitive

• Range Degree C, PPM % RH

• Resolution0.1 Unit or 1 Unit (Application based)

• Sampling Method Direct Plug In

• Display128 X 64 Graphics LCD

• Power Source Built in Lithium Rechargeable battery

• Accuracy/2%

• Response Time

• Data Storage5000 or 10000

• Computer Interface RS 232, USB Sensor

• Operating Time 6 – 8 hours

• Dimension in mm130 (W) X 250 (H) X 90(D)

• Weight0.5 KG

• Warranty One Year
