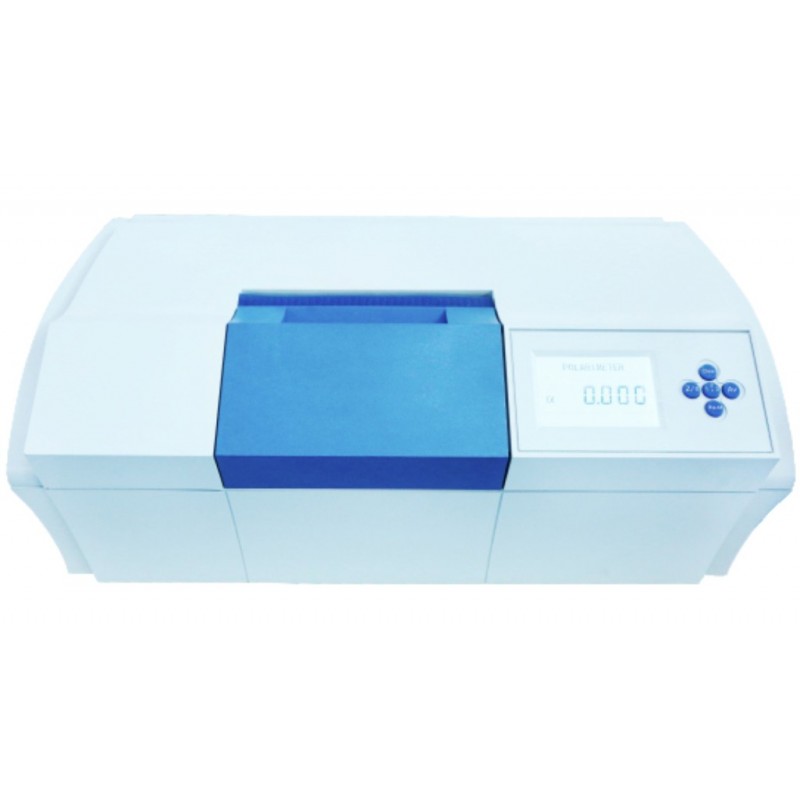

Digital Automatic Polarimeter, Model No.: KI- P701
Product Code :KI-P701
Product Features:
- Automatic Polarimeter instrument used to measure specific optical rotation of optically active substance
- Measuring optical rotation and sugar degree
- Storage of three times results
- Built in auto controlling system with servo mechanism
- Calculation of average values
- Automatic Measurement
- Measurement of dark colored sample RS232 Interface
- Sample Test Tube 100mm / 200mm @ Rs2500/-
- Measuring Mode : Optical Rotation, Sugar.
- Measuring range : ±45°(optical rotation) ±120º Z (sugar)
- Choice Of 3 Pin Power Cord
- Three stages of quality check before dispatch.
Specifications :
| Model No. | KI-P701 |
| Test Modes | Optical Rotation/ Sugar Degree |
| Light Source | LED |
| Wavelength | 589.44nm |
| Measurement | +45° (optical rotation) +120°Z (sugar) |
| Minimum Indicating Value | 0.001° (optical rotation) 0.01°Z (sugar) |
| Accuracy | +(0.01+ measurement value x 0.05%)° (optical rotation) +(0.03+ measurement value x 0.05%)°Z (sugar) |
| Repeatability | <0.002° (optical rotation) |
| Display | LCD |
| Test Tube | 200mm/ 100mm |
| Sample Transmittance | >1% |
| Interface | Rs232 |
| Operation Voltage | 220V + 22V/ 50Hz |
| Overall Dimensions | 730 x 480 x 470mm |
| Weight | 36kg |
| Software | Yes |
