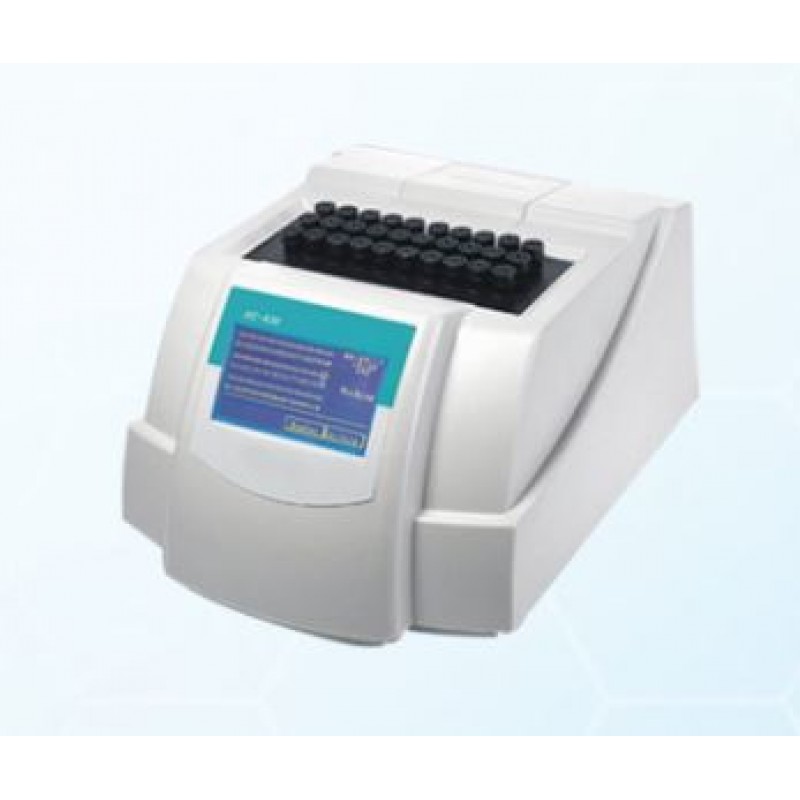

ESR Analyzer-XC A30
Features of ESR Analyzer
- Random Access
- Upto 30 samples can be scanned simultaneously
- Throughput: upto 60 samples per hour
- Temperature comensation refer to 18° c according to westergren method
- ESR curve display and print-out
- Touch screen, largeLCD display
- Built in internal thermal recorder
Specifications of ESR Analyzer :
Area of application | Erythocyte sedimentation rate analysis |
Measuring Principle | infrared sensor |
Reading Channels | 30 channels |
Loading Pattern | Random |
Measuring time | 30 minutes or 60 minutes selectable |
Throughput | upto 60 samples per hour |
Analysis Result | In westergren ESR value(mm/hr) |
Temperature compnesation | refer to 18° c |
Reading reslolution | 0.2mm |
Reproducibility | <3 or ±2mm/1h |
Result resolution | 1mm/1h |
Blood level range | 50mm-64mm |
Display | LCD screen with backlight |
input | Touch screen |
Interface | RS-232 serial port |
Internal thermal recorder | |
Power Supply | AC 220V/110v ±10%, 50/60 Hz, 50W |
Operation Conditions | Temperature 15 ° c -32° c |
Dimension | 400mmx300mmx200mm(Lxbxh) |
Net wt. | 11.5kg |
