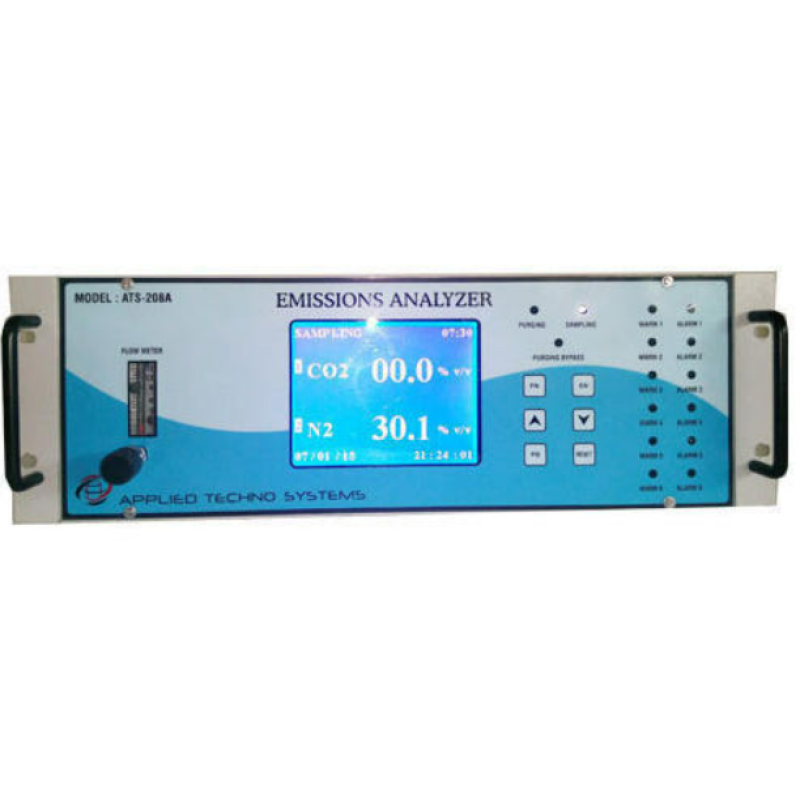

Emissions Gas Analyzer
Product Details:
Product Details:
Brand | Applied Techno Systems |
Usage/Application | Industrial Use,Laboratory Use,Etc |
Power Supply | 230 V AC |
Display Type | Graphics LCD |
Response Time | <5 Second |
Weight | 2.5 Kg |
Temperature | 15 Degree C |
Humidity | < 85%RH |
Features:
- Microcontroller based embedded intelligent instruments
- Continuous Monitoring of CO2 ,CH4, CO, O2, SO2, HF, NOX (NO NO2), H2, H2S, N2
- Duel wavelength Infra red sensor for Long terms accuracy and stability
- Long Life Electrochemical sensor
- Six Gas Analysis in Single Analyzer
- Multi Parameter Single 320 X 240 Graphics LCD Display
- Self diagnostic & Self integrity check
- RS 232/RS 485 and USB Computer Interface
- Excellent low level capability for NOX and SO2 Measurement
- For most of the application sample gas is cooled and dried inside the sampling conditioning systems to avoid the Heated Sample Line.
- Analog 4-20mA output for each gas
- Software solutions for Gas Analysis
- Web Based Real time data transfer with GSM/GPRS Technology.
Specification:
Principle | Electrochemical, TCD (Thermal Conductivity) , NDIR (Non Dispersive Infrared ), Zirconium and Paramagnetic |
Range | %V/V, % LEL, PPM, Mg/M3 |
Resolution | 0.1 Unit or 1 Unit (Application based) |
Sampling Method | Auto Suction |
Gas Sampling Probe | Dia 8mm SS 316 |
Display | 320 X 264 Graphic LCD |
Alarm | Relay Contact NO NC |
Analog Output | 4-20mA |
Digital Out Put | RS 232, RS 485 and Modbus Communication Protocol |
Power Source | 230VAC |
Accuracy | /2% |
Response Time | <5 Second |
Data Storage | 5000 or 10000 |
Computer Interface | RS 232, USB, RS485 |
Sensor Life | 2-3 Years |
Environmental | |
Temperature | 15degree Celsius |
Humidity | < 85%RH |
Atmosphere Pressure | 86- 106Kpa |
Dimension in mm | 430 (W) X 150(H) X 250(D) |
Weight | 2.5 KG |
Warranty | One Year |
