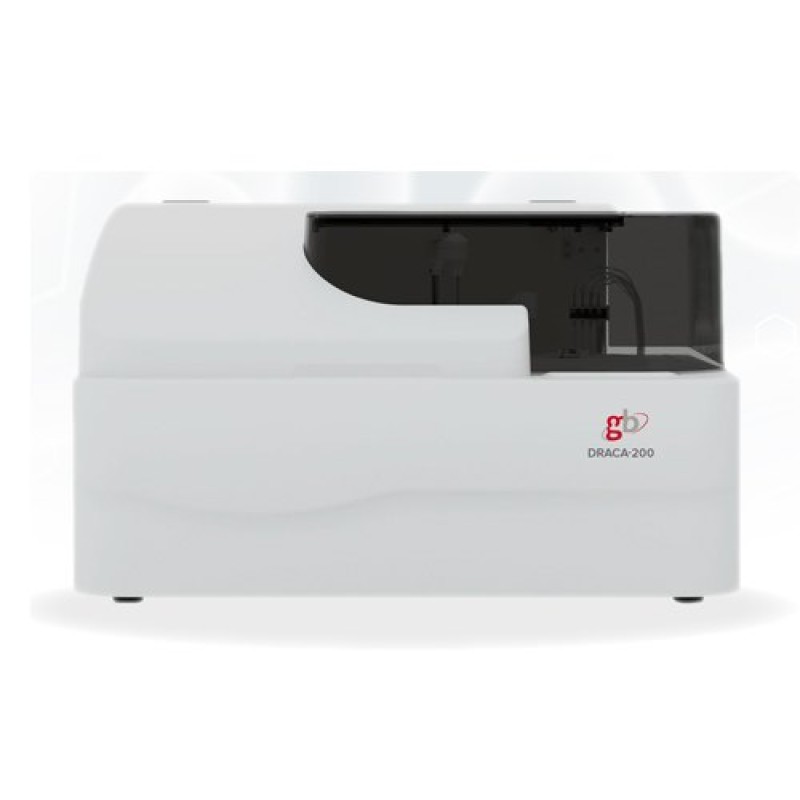

GB DRACA 200 Fully Automated Chemistry Analyzer
Product Details :
Brand | Genuine Biosystem |
Model Name/Number | Draca 200 |
Power Supply | AC 110/220V +- 10%,50/60 Hz,650W |
Water Consumption/Hr | 8L/Hour (Maximum) |
Wavelength | 340nm; 405nm;450nm; 505nm;546nm; 578nm; 630nm; 700nm |
Sample Volume | 2-30 Miu L,Step by 0.1 Miu L |
Weight | 80kg |
Resolution | 0.0001 Ab0-4.0 Abs |
Dimension | 870mm * 690mm * 740mm(L*W*H) |
Interface | TCP/IP Network Interface |
Machine Type | Random Access with dedicated DRACA system packs |
Test Speed | 200 Test/Hour |
Test Principle | Colorimetric Method, Turbidimetry |
Calibration Type | Linear & Nonlinear |
Reagent Tray | 80 Reagent Positions ( 40 for R1 & 40 for R2 ),Non-Stop Cooling System With Peltier Pad Inside. |
Reagent Volume | 20-300 miu l, Step by 1 Miu l |
Reagent Needle | Liquid Surface Detection, Timely Tracking for Liquid Volume, Collision Avoidance. |
Operation System | Windows XP, Windows 7,Windows 8,10 |
Report Printing | 6 Formats, Optional, Support Custom Pattern |
Sample Tray | 40 Sample Positions |
Sample Tube | Micro Cup & Test Tube & Blood Collection Tube Can Be Used |
Sample Probe | Liquid Surface Detection, Timely Tracking For Liquid Volume. Collision Avoidance |
Sample Barcode | Sample Barcode Reader |
Mixer - Paddle | Type Mixing, Effective Reducing of Carry-over |
Light Source | Halogen Lamp |
Absorbance Range | 0-4.0 Abs |
Reaction tray | 44 Reaction Cuvettes, New Amorphous Optical Plastics Reaction Cups, Perfect Transmittance. |
Reaction Volume | 50 Miu l-330 Miu l |
Reaction Time | 10 Minutes |
Temperature | Peltier Pad Incubation System, Reaction Temperature ( 37 Degree C +- 0.1 Degree C ) |
Description :
Data Processing
Automatic Calibration Test Combination, Effective Time Management of Reagents, Serum Index, Whole Process. Detection, Linear Expansion of Enzyme, Blank Deduction, Dirty Cuvette Memory, Cross Infection Prevention, Patient Information Memory and Association Input, Automatic Report Audit, Data Fuzzy Query, Report Statistics and Printing, Reference Range Grading, Alarm Information Classification, User Operation Privilege Classification Management.
