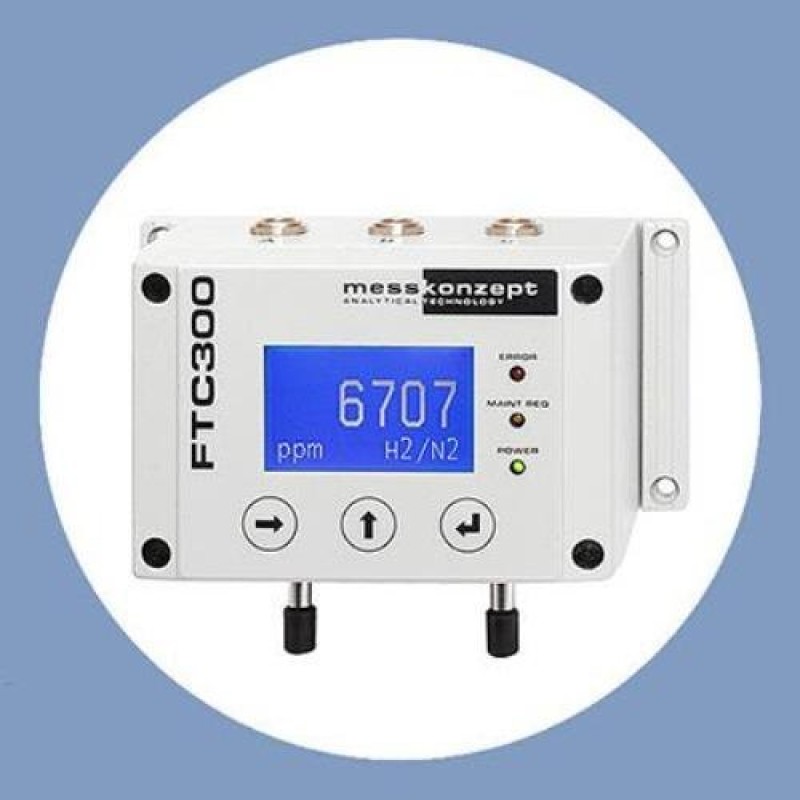

Gas Analyser FTC 300
Product Details :
Model Name/Number | FTC-300 |
Brand | Messkonzept |
Usage/Application | Accurate and long term stable thermal conductivity measurement |
Product Type | Fast Thermal Conductivity Analyzer |
Power Supply | 24V DC (18V to 36V), 700mA |
Features | PC-based service program simplifies all settings, linearization and calibration - Small and robust t |
Color | white |
Weight | max. 1800g |
Dimension | 145mm x 80mm x 85mm; |
Range | -5 DegreeC to 50 DegreeC, other on request |
Flow Rate | 40l/h to 150l/h; 60l/h -80l/h recommended |
I Deal In | New Only |
Accurate and long term stable thermal conductivity measurement
• High sensitivity e.g. 0-0.5Vol.% H2 in N2 range; Low noise <10ppm H2 in N2
• Precise linearization for the gas mixtures as H2, He, CO2, CH4 in N2 or Ar and N2 in Ar on board
• Customized linearization with polynomial up to sixth order
• Multi Gas Mode allows sequential indication of up to 15 binary mixtures
• Isolated 4-20mA output, expandable; free set of start and end within 100 Vol.% range • Classic 2-point calibration or simple one-gas calibration
• Free set of display indication (ppm or Vol.%) at a resolution up to 1ppm
• Cross sensitivity compensation by feed in of external signal and internal calculation
• Fast response with a T90-time of less than 1 sec (depending on flow rate)
• Pressure proof (20bar) and vacuum leak tight stainless steel (LF316i) gas duct
• Three isolated relays for indication of alarms and instrument status
• RS 232 excess to all values and parameters
• Digital output with 1ppm resolution over the whole 100Vol.% range
Additional Information:
- Delivery Time: 4-6 weeks
